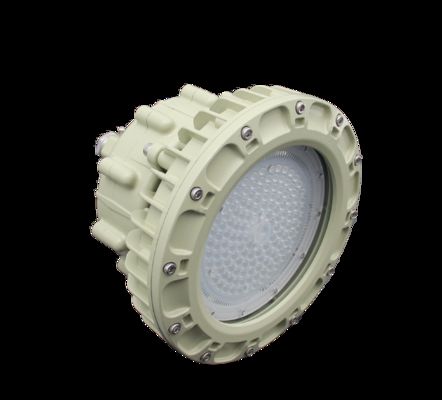

ATEX led explosion proof light 100W 150W 140lm/w warehouse explosion-proof lights explosion proof high bay light
GYD680 Series
Features:
Explosion-Proof Construction: The housing is designed with robust materials and special seals to contain any internal spark or high temperature, preventing it from igniting the surrounding hazardous atmosphere.
High Efficiency & Brightness: Typically utilize high-lumen LEDs, providing excellent illumination for large, high-ceiling areas like warehouses and factories while consuming less energy.
Robust & Durable Housing: Made from materials like die-cast aluminum and high-strength polycarbonate, offering superior impact resistance and corrosion resistance for harsh industrial environments.

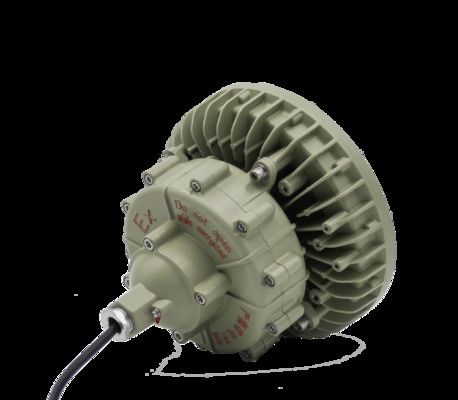

Excellent Thermal Management: Designed with advanced heat sinks and cooling fins to effectively dissipate heat, ensuring long component life and stable performance.
Applications
| Typical applications include: |
| Oil and gas industries |
| Chemical, petrochemical |
| Pharmaceutical industries |
| Pulp and Paper |
| Waste and sewage treatment |
| Power Generation |
| Other high humidity, high dust, high temperature, vapor locations |
Standard Materials
| Housing: |
Die-casting aluminum |
| Exterior: |
Stainless steel |
| Globe: |
Tempered glass |
| Gasket: |
Silicon rubber |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| For use in |
Zone 1, 2 & Zone 21, 22 |
| Rated voltage |
100-277VAC, 50-60Hz |
| Power factor |
>0.98 |
| THD |
<20% |
| Power consumption [W] |
50-100W, 120-150W |
| Colour rendering [CRI] |
70 (±2) |
| Colour temperature [K] |
3000-6500 |
| Luminaire efficiency[Lm/W] |
130-145 |
| Beam angle |
120° (60°, 90° optical len is optional) |
| Degree of protection |
IP66 |
| Cable entry |
G 3/4”;NPT3/4” |
| Weight [kg] |
7.25;8.6 |
| Terminal |
≤2.5 mm² |
| Mounting Styles |
Ceiling; Wall Bracket; Pendant |
Dimension [mm]
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
