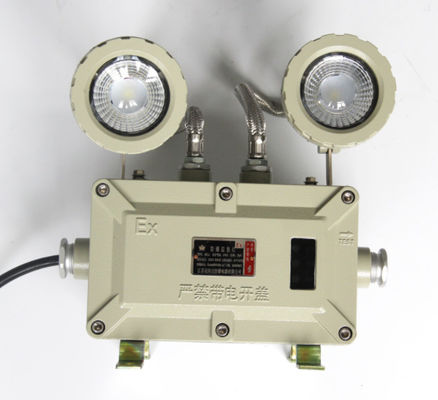

Product Details:
|
| Ex Marking: | ExdⅡCT6 Gb/Ex TD A21 IP65 T80℃ | Application: | Zone 1,2 & 21,22 |
|---|---|---|---|
| IP Degree: | IP65 | Light Source: | LED 3W |
| Input Voltage: | 220VAC, 50/60 Hz 24VDC/24VAC/36VDC | Work Time: | ＞120min |
| Size [mm: | 7 | Weight [kg: | 7 |
| High Light: | Maintenance Free ExProof Emergency Light,3Wx2 ExProof Emergency Light,IP65 ExProof Emergency Light |
||
|
Type
|
BYY
|
| Ex Mark | ExdⅡCT6 Gb/Ex tD A21 IP65 T80℃ |
|
IP Degree
|
IP65 |
|
Input voltage
|
220VAC, 50-60Hz
|
|
Power consumption [W]
|
2*3 W
|
|
Back-up Battery
|
>120min
|
|
Entries
|
G 3/4" (suitable for Φ10mm-Φ14mm cable); NPT3/4” is optional
|
|
Size [mm]
|
243*570*55 mm
|
|
Weight [kg]
|
2.6kg |
|
Mounting Styles
|
Ceiling; Wall; Base Mount
|
1. A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
2. Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
3. Areas with high energy costs
4. Typical applications include: Oil and gas industries, Chemical, petrochemical, Pharmaceutical industries, Pulp and Paper, Waste and sewage treatment, Power Generation
