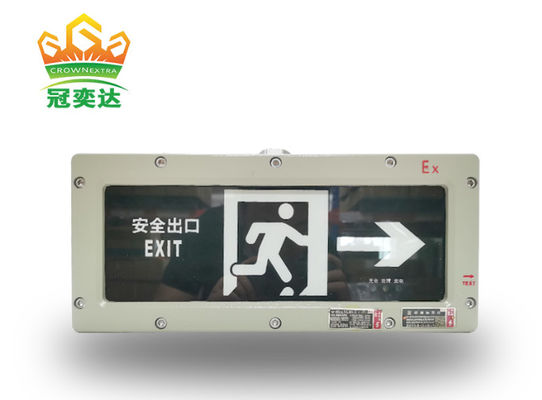

ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W

ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W
ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W
ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W

Large Image :  ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W

Product Details:
Place of Origin: CHANGZHOU,JIANGSU,CHINA
Brand Name: CROWN EXTRA
Certification: ATEX CNEX CERoHS ISO9001
Model Number: BYY
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD48/PC
Packaging Details: carton box,bubble wrap, pallet
Delivery Time: 5-7 WORK DAYS
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS PER MONTH

ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W

Description
Name: Explosion Proof Exit Sign For Use In: Zone 1&2, Zone 21&22
Ex Mark: Ex E Ib IIC T6 Gb;Ex TD A21 IP65 T80℃ Emergency Power Voltage: 3.6V
Ambient Temperature: -45℃~+60℃ Power Consumption: 3W
Mounting Styles: Ceiling; Wall; Base Mount Weight: 3.25kg
High Light:

Explosion Proof Exit Sign IP65

,

ATEX Explosion Proof Exit Sign

,

G3/4 Explosion Proof Exit Light

ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W



Feature:



1. Zone 1&2, Zone 21&22
2. Toughened glass transparent cover with high light transmittance
3. Ultra-bright LED light source, service life is up to 50,000 hours
4. Designed with test buttons, convenient for regularly maintenance
5. Die-cast aluminum body with baked epoxy powder coat finish for durability and corrosion resistance.
6. Equipped with an explosion-proof buzzer with a 65dB-85dB voice. When the product is in fault status, the buzzer will work 1-3s every minute to remind the user to maintain the product.
7. The light fitting is designed with a main power indicator, failure and charging indicator, to the using status.





Product Power 3W
Input Voltage 220-240V
Frequency 50-60Hz
Power Factor 0.95
Ex-mark Ex e ib IIC T6 Gb;Ex tD A21 IP65 T80℃
IP Rating IP 65
Protection grade WF2
Emergency power voltage 3.6V
Light Efficiency ≥90lm/W
Ambient temp -45℃~+60℃
Service life >50000H





Dimension & Installation [mm]
ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W 0

ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W 1





ATEX Hazardous Area Explosion Proof Exit Sign IP65 G3/4 220VAC 50-60Hz 3W 2
