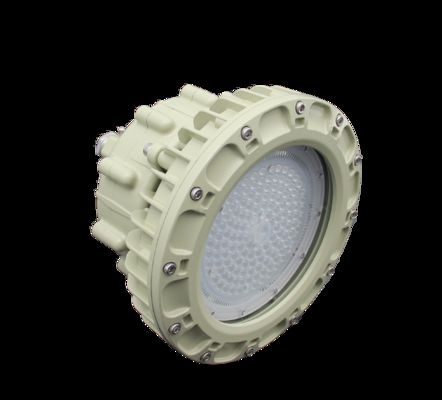

Maintenance Free Hazardous Location Explosion Proof Led High Bay Lights
Features:
1. Zone2, Zone 21,22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
4. Isolated LED compartment reduces temperature within driver housing
5. Multi choice of beam angle for 60° 90° 120°
Application:
1. Grain and Agricultural Product Processing and Storage
Sites: Grain silos, grain elevators, flour mills, sugar mills, cocoa processing plants, coffee processing plants, and feed mills.
Risks: Large amounts of combustible dust, such as flour, starch, powdered sugar, and milk powder, are generated during processing, transportation, and storage. When these fine dusts reach a certain concentration in the air and encounter an ignition source, they can cause a violent dust explosion.
2. Metal Processing and Manufacturing
Sites: Polishing, grinding, and processing workshops for metals such as aluminum, magnesium, titanium, and zirconium; and 3D printing (metal powder) workshops.
Risks: Some metals are highly flammable in powder form, especially aluminum and magnesium powders. Once they form clouds in the air, they can easily ignite and cause a violent explosion.
3. Textile and Wood Processing
Sites: Textile mills (especially those processing fibers such as cotton and linen), man-made fiber mills, wood processing plants, sawmills, and furniture manufacturing workshops.
Risks: Natural fiber dust, man-made fiber dust, and wood dust are all combustible. Accumulating to a certain concentration in a confined space can cause explosions when exposed to a fire source.
4. Municipal and Public Utilities
Sites:
Wastewater treatment plants/biogas plants: The treatment process produces flammable and explosive gases such as methane (biogas) and hydrogen sulfide.
Gas pressure regulating stations/boiler rooms: There is a risk of leakage of fuels such as natural gas and liquefied petroleum gas.
City gas pipeline wells and underground utility corridors: Leaked gas may accumulate.
Landfills/incineration plants: The decomposition of waste produces methane.
Specification:
| European (ATEX) Gas and Dust |
II 2G Ex nR e IIC T6
II 2D Ex td T80℃ |
| For use in |
Zone 2 & Zone 21, 22 |
| Electrical data |
|
|
|
|
|
|
|
| Rated voltage |
100-240VAC, 50-60Hz |
| Power factor |
>0.95 |
| THD |
<20% |
| Luminous characteristics |
|
|
|
|
|
|
|
| Power consumption [W] |
20～70 |
80-100 |
100-200 |
220-300 |
| Colour rendering [CRI] |
70 (±2) |
| Colour temperature [K] |
5700-6500 |
| Luminaire efficiency [Lm/W] |
125 |
| Beam angle |
120° (60°, 90° is optional) |
| Mechanical data |
|
|
|
|
|
|
|
| Degree of protection |
IP66 |
| Cable entry |
G 3/4” |
| Weight [kg] |
4.8 |
6.4 |
8.8 |
/ |
| Terminal |
≤2.5 mm² |
| Mounting Styles |
Ceiling; Wall Bracket; Pendant |
Installation method:
Bracket type, hoisting type, flange type, ceiling type, wall type
