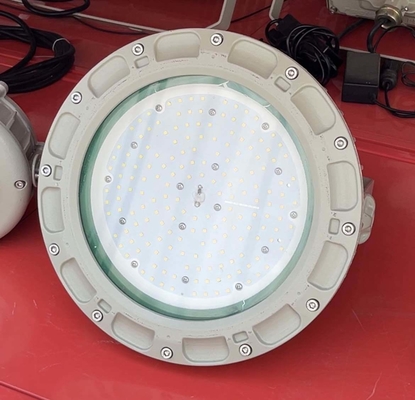

Wall-Mounted Explosion Proof LED High Bay Light 200W/240W – Die-Cast Aluminum COB Lamp

Certification
China crown extra lighting co. ltd certification
China crown extra lighting co. ltd certification
I'm Online Chat Now

Wall-Mounted Explosion Proof LED High Bay Light 200W/240W – Die-Cast Aluminum COB Lamp

Wall-Mounted Explosion Proof LED High Bay Light 200W/240W – Die-Cast Aluminum COB Lamp
Wall-Mounted Explosion Proof LED High Bay Light 200W/240W – Die-Cast Aluminum COB Lamp

Large Image :  Wall-Mounted Explosion Proof LED High Bay Light 200W/240W – Die-Cast Aluminum COB Lamp

Product Details:
Place of Origin: CHINA
Brand Name: CROWN EXTRA
Certification: ATEX,CE,CNEX,ISO,RoHS
Model Number: 620
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: 1SET/CTN
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 10000 Per Month

Wall-Mounted Explosion Proof LED High Bay Light 200W/240W – Die-Cast Aluminum COB Lamp

Description

Features:



1.Shell made of high strength aluminum alloy casting off surface after blast cleaning by high voltage electrostatic spray.
2.Lamp housing is made of high borosilicate toughened glass with transmittance.It's the antiglare design.
After designed by special software design of distribution for two times,it can get the comfirmation.

3. Instant on crisp white light output

4. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications

5. Isolated LED compartment reduces temperature within driver housing

6. Constant current output, stable performance

7. Low power consumption, high light efficiency, good color rendering property





Specification:



ELECTRIC
Operating voltage AC 110-240V (50-60Hz) Power consumption 50W/80W/100W/150W/200W
MECHANICAL
Size 360*170cm Anti-corrosion WF1
Operating temperature -20 ̊C ~ +40 ̊C Cable entry M25*1.5/NPT 3/4”cable entry, suitable for ø10 ~ ø14mm² cable ≤2.5mm² conductor
Weight 8Kg IP Class IP65
Installation Bracket mount, ceiling mount, jib mount, guardrail mount, flange mount
CERTIFICATION LABEL
Standard GB3836.1-2010,GB3836.2-2010, GB12476.1-2000,
IEC60079-0:2011, IEC60079-1:2007,IEC60079-31:2008,
EN60079-0:2009,EN60079-1:2007,EN60079-31:2009





Application:



Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Alcohol industry





Company introduction:



Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales
and service. The company is located in Changzhou, China.

The company is committed to becoming a provider of environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc.
