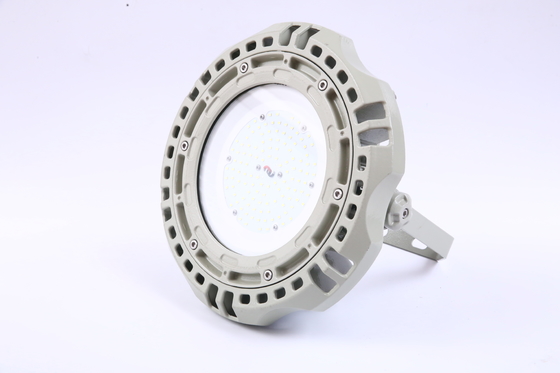

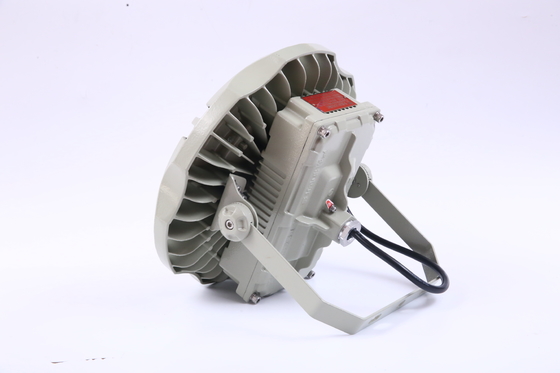

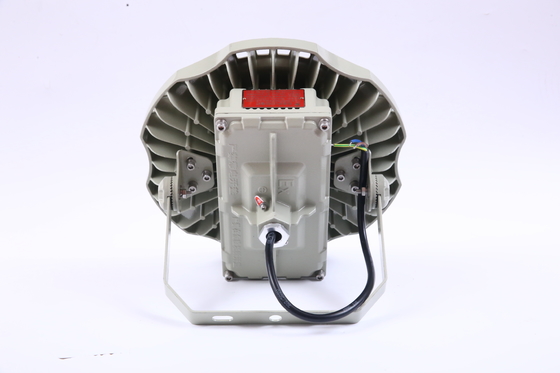

“Hazardous‑Location Explosion‑Proof UFO High Bay LED – 120 lm/W, IP66 Waterproof for Warehouses”

Large Image : “Hazardous‑Location Explosion‑Proof UFO High Bay LED – 120 lm/W, IP66 Waterproof for Warehouses”

Product Details:

Place of Origin:	CHINA
Brand Name:	CROWN EXTRA
Certification:	ATEX,CE,CNEX,ISO,RoHS
Model Number:	GYD810

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	negotiable
Packaging Details:	1SET/CTN
Delivery Time:	5-7 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10000 Per Month

Contact Now

“Hazardous‑Location Explosion‑Proof UFO High Bay LED – 120 lm/W, IP66 Waterproof for Warehouses”

Description

Voltage Rating:	AC100-290V 50Hz/60Hz 24/36 VDC	Installation Method:	Ceiling, Flat
Lamp Luminous Efficiency:	135 Lm/w,	Mounting Styles:	Ceiling; Wall; Bracket; Pendant; Flange
Color Temperature:	5000K	Used Zone:	Zone 1,2 And 21, 22
Material:	Aluminum Alloy	Finish:	Yellow/grey
Lumen:	5500Lm	Application:	Explosive Environments, Such As Oil Refineries, Chemical Plants, And Gas Stations
Wf Degree:	WF2	Light Source:	LED
Size:	270x170mm/ 270mmx300mm	Wattage:	-150W
Lamp Luminous:	130lm/w

Features:

1. Zone2, Zone 21,22

2. Instant on crisp white light output

3. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications

4. Isolated LED compartment reduces temperature within driver housing

5. Multi choice of beam angle for 60° 90° 120°

Application:

1. Typical applications include

2. Oil and gas industrial

3. Chemical petrochemical

4. Pharmaceutical industries

5. Pulp and Paper

6. Waste and sewage treatment

7. Power Generation

Specification:

European (ATEX) Gas and Dust	II 2G Ex nR e IIC T6 II 2D Ex td T80℃
For use in	Zone 2 & Zone 21, 22
Electrical data
Rated voltage	100-240VAC, 50-60Hz
Power factor	>0.95
THD	<20%
Luminous characteristics
Power consumption [W]	20～70	80-100	100-200	220-300
Colour rendering [CRI]	70 (±2)
Colour temperature [K]	5700-6500
Luminaire efficiency [Lm/W]	125
Beam angle	120° (60°, 90° is optional)
Mechanical data
Degree of protection	IP66
Cable entry	G 3/4”
Weight [kg]	4.8	6.4	8.8	/
Terminal	≤2.5 mm²
Mounting Styles	Ceiling; Wall Bracket; Pendant
