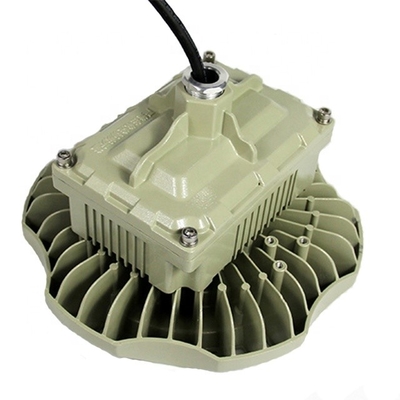

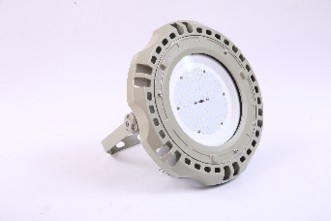

50W 150W 240W Explosion Flame Proof Led Light Explosion Proof Classification Zone 1 Class 1 Zone 2

Large Image : 50W 150W 240W Explosion Flame Proof Led Light Explosion Proof Classification Zone 1 Class 1 Zone 2

Product Details:

Place of Origin:	CHINA
Brand Name:	CROWN EXTRA
Certification:	ATEX,CE,CNEX,ISO,RoHS
Model Number:	GYD810

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	negotiable
Packaging Details:	1SET/CTN
Delivery Time:	5-7 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10000 Per Month

Contact Now

50W 150W 240W Explosion Flame Proof Led Light Explosion Proof Classification Zone 1 Class 1 Zone 2

Description

Work Time:	50000 Hours	Input Voltage:	AC100-277V
Classification:	Group II, Catogory 2 GD	Lifetime:	>50000h
Luminous Flux:	10000lm	Driver Brans:	MEANWELL Driver
Color:	Customizable	Cct:	5000K
Lifespan:	50000 Hours	Light Source:	CREE
Globe:	Tempered Glass	Power:	50-240W
Mounting:	Bracket.Ceiling,Flange Mount,Wall Mount	Used Zone:	Zone 1,2 And 21, 22
Exterior:	Stainless Steel

Features:

Aluminium alloy Enclosure,high voltage electrostatic powder coated after shot blasted.
High strength toughened glass cover.
Exposed fasteners are of stainless steel with function of high corrosion-proof.
With grids to adjust lighting effect and reduce the glare.
Environmental-friendly and energy saving, simple shape, easy installation
Constant current output, stable performance
Low power consumption, high light efficiency, good color rendering property
Widely used in factories, warehouses, stadiums and other panoramic lighting

Application:

Oil and Gas industry

1. All petroleum production and refining

2. Petroleum storage

Chemical industry

1. All types of paint facilities

2. Chemical production and storage

Metal treatment

1. Steel and aluminum factories

2. Pumping stations in any environment

Food and alcohol industry

1. Flour and fine particle production and storage

2. Food and distilling production

Specification:

ELECTRIC
Operating voltage	AC 110-240V (50-60Hz)	Power consumption	50W/100W/150W
MECHANICAL
Humidity	10%~95%RH	Anti-corrosion	C4/WF1/WF2
Operating temperature	-30 ̊C ~ +40 ̊C	Cable entry	M25*1.5/NPT 3/4”cable entry, suitable for ø10 ~ ø14mm² cable ≤2.5mm² conductor
Weight	8Kg	IP Class	IP65
Installation	Bracket mount, ceiling mount, 30° wall mount, 90° wall mount, jib mount, guardrail mount, flange mount
CERTIFICATION LABEL
Standard	GB3836.1-2010,GB3836.2-2010, GB12476.1-2000,
	IEC60079-0:2011, IEC60079-1:2007
	EN60079-0:2009,EN60079-1:2007,EN60079-31:2009

Installation Instructions:

Before installation, check voltage, power and other parameters carefully and make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
