Product Details:
|
| Product Name: | ATEX Approved Explosion Proof High Bay Light IP66 LED Industrial 100w 150w 200w | Model: | GYD620 |
|---|---|---|---|
| Power: | 50-240W | IP Rating: | IP66 |
| Input Voltage(V): | 100-240VAC | Lamp Luminous Efficiency(lm/w): | 130 |
| Working Lifetime(Hour): | 50000 | Warranty(Year): | 5-Year |
| Application Area: | Zone1 Zone 2, Zone 21 Zone 22 | Mounting Style: | Pendant;ceiling; Wall Bracket; Stanchion |
| Highlight: | explosion proof high bay light fixture IP66,explosion proof led high bay lights,explosion proof high bay light fixture 100w |
||

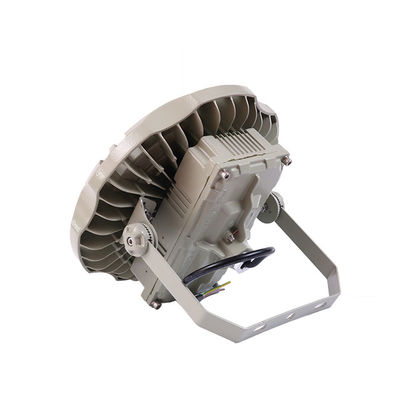

ATEX Approved Explosion Proof High Bay Light IP66 LED industrial 100w 150w 200w
Features:
1. Zone 1&2, Zone 21&22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
4. Isolated LED compartment reduces temperature within driver housing
5. Dense cooling fins design enhances airflow for greater heat dissipation
6. 5 year fixture warranty
Applications
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Standard Materials
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber
Certifications
Data Sheet
Explosion protection
| European (ATEX) Gas and Dust |
II 2D Ex tb T80℃ |
| For use in |
Zone 1, 2 & Zone 21, 22 |
| Power consumption [W] | 20~70 | 80~120 | 150~200 | 220-240 |
| Colour rendering [CRI] | 70 (±2) | |||
| Colour temperature [K] | 5500-6000K | |||
| Luminaire efficiency [Lm/W] | 120-130 | |||
| Beam angle | 120° (60°, 90° is optional) | |||
Mechanical data
| Degree of protection | IP66 | |||||
| Cable entry | G 3/4” | |||||
| Dimension[mm] | 270*270*170 | 320*320*170 | 360*360*170 | 400*400*175 | ||
| Weight [kg] | 5.25 | 6.5 | 8.6 | 10.7 | ||
| Terminal | ≤2.5 mm² | |||||
| Mounting Styles | Ceiling; Wall Bracket; Pendant | |||||
