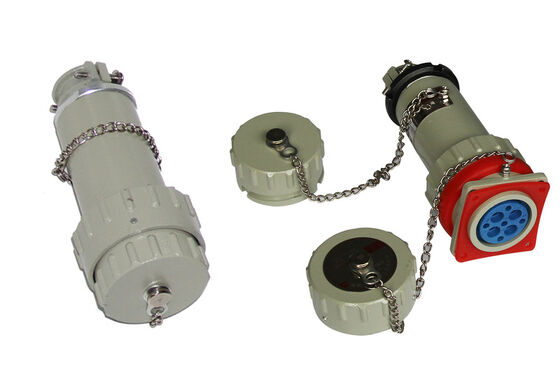

Ex Mark Ex Tb IIIC T80°C Db Explosion-Resistant Plug and Socket Hazardous Zone1 Division1 Industrial Electrical Connector

Product Description:

The Explosion Proof Plug and Socket is a highly reliable and robust electrical connector specifically designed for use in hazardous industrial environments, particularly within the oil and gas sector. Engineered to meet the stringent requirements of explosive atmospheres, this product ensures maximum safety and performance where the risk of ignition due to electrical sparks or heat must be strictly controlled. It is an ideal solution for applications requiring secure and durable electrical connections under extreme conditions.

Rated for currents of 16A, 32A, and 63A, the Explosion Proof Plug and Socket accommodates a wide range of power needs, making it versatile for various industrial equipment and machinery. With a voltage rating of 220/380VAC, it supports standard industrial power supplies, ensuring compatibility with most electrical systems used in oil and gas facilities. The robust construction and high current ratings make it suitable for heavy-duty industrial applications, providing dependable power delivery where safety cannot be compromised.

This Explosion-Proof Plug and Socket is certified with the Ex Mark classifications Ex Db Eb IIC T6 Gb and Ex Tb IIIC T80°C Db, signifying its compliance with international safety standards for use in explosive atmospheres. The Ex Db Eb IIC T6 Gb rating indicates that it is suitable for gas groups IIC (which includes the most dangerous gases such as hydrogen and acetylene) with a maximum surface temperature of 85°C, while the Ex Tb IIIC T80°C Db classification ensures its resistance to combustible dust environments. These certifications underscore the product’s intrinsic safety and suitability for hazardous areas, providing peace of mind to operators and engineers.

Designed to withstand harsh environmental conditions, this Intrinsically Safe Connector also boasts an IP66 and WF2 rating. The IP66 rating guarantees complete protection against dust ingress and powerful water jets, making it ideal for outdoor or washdown applications. The WF2 designation ensures resistance to corrosive weather conditions, further extending the product’s durability and lifespan. This makes the Explosion-Proof Plug and Socket not only safe but also highly reliable in challenging industrial settings.

In industrial oil and gas applications, where explosive gases and dust are prevalent, the use of appropriate connectors is critical to preventing accidents and ensuring continuous operation. The Explosion Proof Plug and Socket is specifically designed to prevent ignition sources from electrical faults, making it an essential component in intrinsically safe electrical systems. Its rugged design, combined with advanced sealing and insulation technologies, helps maintain electrical integrity and operational safety even in the most demanding environments.

The product’s user-friendly design allows for easy installation and maintenance, reducing downtime and increasing operational efficiency. Its compatibility with standard industrial wiring and mounting options ensures seamless integration into existing systems without the need for extensive modifications. This practical approach saves costs and simplifies safety compliance efforts in industrial plants.

In summary, the Explosion Proof Plug and Socket is a critical safety device tailored for industrial oil and gas applications requiring intrinsically safe connectors. With its reliable current ratings of 16A, 32A, and 63A, voltage compatibility of 220/380VAC, and robust certifications including Ex Db Eb IIC T6 Gb and Ex Tb IIIC T80°C Db, it delivers superior protection and performance in explosive atmospheres. Its IP66 and WF2 ratings further enhance durability, making it a trusted choice for professionals seeking dependable explosion-proof plug and socket solutions. Investing in this product means prioritizing safety, compliance, and operational excellence in hazardous industrial environments.

Features:

• Product Name: Explosion-Proof Plug and Socket
• IP Rating: IP66 WF2, providing excellent protection against dust and water ingress
• Rated Current Options: 16A, 32A, and 63A to suit various power requirements
• Application: Designed for use in Hazardous Zone 1 Division 1 environments
• Core Material: Brass coated with silver for enhanced conductivity and corrosion resistance
• Construction Material: Made from whole plastic (GRP) ensuring durability and explosion resistance
• Features Explosion-Resistant Plug and Socket design to ensure safety in hazardous locations
• Suitable for industrial use where explosion-proof and explosion-resistant electrical connections are critical

Technical Parameters:

Applications:

The Crown Extra AC8060 Explosion Proof Plug and Socket is specifically engineered to meet the rigorous demands of hazardous environments, making it an ideal choice for industries requiring reliable and safe electrical connections. Certified with ATEX and ISO9001, this product guarantees compliance with international safety standards, ensuring maximum protection in hazardous zones.

Designed for use in Hazardous Zone 1 Division 1 areas, the AC8060 model offers an intrinsically safe plug and socket solution that effectively prevents ignition sources in explosive atmospheres. Its explosion-resistant outlet design, combined with an IP66 and WF2 rating, provides exceptional protection against dust, water, and corrosive elements, making it suitable for both indoor and outdoor applications where harsh conditions prevail.

Constructed entirely from high-quality Glass Reinforced Plastic (GRP), the Crown Extra AC8060 ensures durability and resistance to chemical corrosion, while maintaining a lightweight profile. With a Class I, Division 1, Groups C & D explosion proof rating, this hazardous location plug and socket is expertly designed to handle environments with flammable gases or vapors, reducing the risk of electrical sparks.

This model features a two-wire configuration, simplifying installation while maintaining safety and reliability. The minimum order quantity is only 1 piece, with a competitive price range of $50.00 to $100.00, making it accessible for various project scales. Crown Extra supports a supply ability of 5000 pieces per month and offers a delivery time of 5-7 working days, ensuring prompt fulfillment of orders. Payment terms are handled via TT, providing a straightforward transaction process.

The explosion proof plug and socket AC8060 by Crown Extra is widely applied in industries such as oil and gas, chemical plants, mining, and other sectors where hazardous location plug and socket solutions are critical. Its robust design and certified safety features make it the preferred choice for ensuring operational safety and minimizing downtime in explosive environments.
