Advanced Explosion Proof Plug and Socket for Hazardous Environments in Grain and Food Processing Industry

Certification
China crown extra lighting co. ltd certification
China crown extra lighting co. ltd certification
I'm Online Chat Now

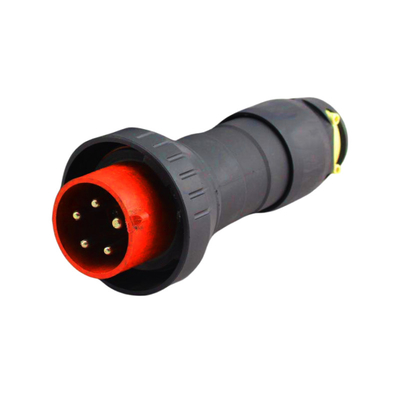

Advanced Explosion Proof Plug and Socket for Hazardous Environments in Grain and Food Processing Industry

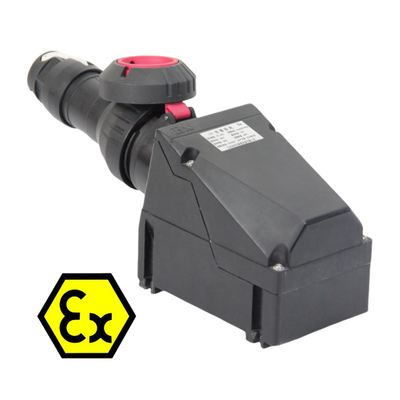

Advanced Explosion Proof Plug and Socket for Hazardous Environments in Grain and Food Processing Industry

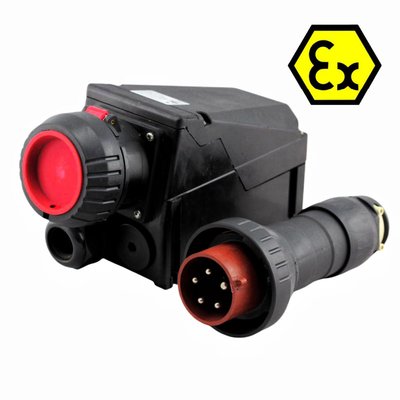

Advanced Explosion Proof Plug and Socket for Hazardous Environments in Grain and Food Processing Industry Advanced Explosion Proof Plug and Socket for Hazardous Environments in Grain and Food Processing Industry Advanced Explosion Proof Plug and Socket for Hazardous Environments in Grain and Food Processing Industry

Large Image :  Advanced Explosion Proof Plug and Socket for Hazardous Environments in Grain and Food Processing Industry

Product Details:
Place of Origin: CHINA
Brand Name: CROWN EXTRA
Certification: ATEX,CE,CNEX,ISO,RoHS
Model Number: AC8060
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: 1SET/CTN
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 10000 Per Month

Advanced Explosion Proof Plug and Socket for Hazardous Environments in Grain and Food Processing Industry

Description
Material: GRP/Aluminum Explosion Protection: Ex D IIC T6 Gb
Phase: Non-sparking Core Multi-core Ex Mark: Ex D E IIC T6 Gb
Current Rating: 16A,32A,63A Cable Entry: M20/M25
Voltage: 220/380/440VAC Core: Brass Coating Silver
Application: Industrial Oil&Gas Model: Moible

Applications

1. Gas stations - During the refueling and unloading process, gasoline can easily evaporate, forming flammable vapors. These vapors, when mixed with air and exposed to sparks, can explode.

2. Chemical plant reaction rooms - During the production process, pipes and valves may leak flammable and explosive gases or solvent vapors such as benzene, alcohols, and ethers.

3. Coal mine tunnels - Coal seams continuously emit methane (gas), and mining operations generate large amounts of combustible coal dust, creating a typical explosive environment.

4. Flour mill grinding rooms - Grain processing generates airborne flour dust, which, when reaching a certain concentration, can cause a dust explosion when exposed to an ignition source.

5. Automotive paint spray booths - Paint mist and solvent vapors emitted by thinners (such as thinner) used during spraying are both flammable and explosive.

6. Gas boiler rooms/pressure regulating stations - Natural gas (primarily methane) pipelines and valves may leak, and accumulation can create an explosive atmosphere.

7. Alcohol/Liquor Bottling Plant - Alcohol (ethanol) is highly volatile. In a confined space, its vapor can form an explosive mixture when mixed with air.

8. Aluminum/Magnesium Alloy Grinding and Polishing Plant - Aluminum and magnesium powders generated during processing are flammable metal dusts that can explode violently when exposed to open flames or high temperatures in air.

9. Anaerobic Tanks in Sewage Treatment Plants - The sewage treatment process produces methane (primarily methane) as a byproduct, which can easily accumulate in tanks or pumping stations.

10. Solvent/Paint Warehouses - Flammable liquids (such as toluene) stored in centralized locations continuously evaporate, and vapor concentrations can easily reach explosion limits in the absence of adequate ventilation.



How do I determine whether I need explosion-proof lighting?

Simply put, if a location is classified as an "explosive atmosphere" and has been clearly divided into explosion-hazardous zones (e.g., Zone 0, Zone 1, Zone 2; Zone 20, Zone 21, Zone 22) according to national standards (such as China's GB3836), then all electrical equipment within that area, including lighting, must use explosion-proof products of the corresponding explosion-proof grade and type.

Key keywords: flammable gases, flammable vapors, combustible dusts, and flammable fibers. Whenever these substances may be present in the work environment, the use of explosion-proof electrical equipment must be prioritized to ensure the safety of life and property.



Technical Parameters​

Advanced Explosion Proof Plug and Socket for Hazardous Environments in Grain and Food Processing Industry 0

Type Plug & Receptacle
Ex Rate Ex d e IIC T6 Gb
Rated Current【A】 16 32 63
Rated Voltage 220/380VAC

Degree of protection

IP66
Entries
M25*1.5 (suitable for
Φ8mm-Φ17mm cable)
M40*1.5 (suitable for
Φ13mm-Φ27mm cable)
M40*1.5 (suitable for
Φ13mm-Φ27mm cable)
The cable for plug Φ8mm-Φ19mm Φ12mm-Φ28mm Φ12mm-Φ28mm
