Anti-corrosion ATEX Explosion-proof Plug and Socket 16A 32A 63A for Hazardous Environments

Certification
China crown extra lighting co. ltd certification
China crown extra lighting co. ltd certification
I'm Online Chat Now

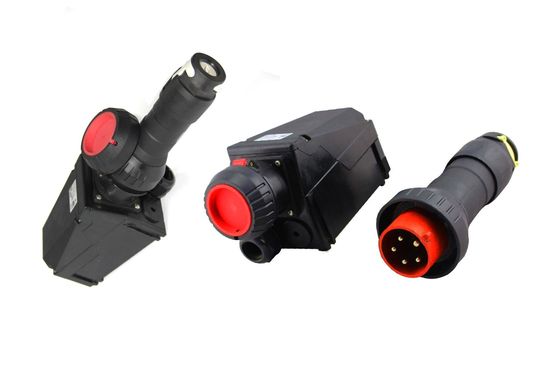

Anti-corrosion ATEX Explosion-proof Plug and Socket 16A 32A 63A for Hazardous Environments

Anti-corrosion ATEX Explosion-proof Plug and Socket 16A 32A 63A for Hazardous Environments
Anti-corrosion ATEX Explosion-proof Plug and Socket 16A 32A 63A for Hazardous Environments Anti-corrosion ATEX Explosion-proof Plug and Socket 16A 32A 63A for Hazardous Environments

Large Image :  Anti-corrosion ATEX Explosion-proof Plug and Socket 16A 32A 63A for Hazardous Environments

Product Details:
Place of Origin: China
Brand Name: Crown Extra
Certification: ATEX,CE,ROHS,CNEX,ISO9001
Model Number: AC8060
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD14-120 per pc
Packaging Details: CARTON、WOODEN BOX、PALLET
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 50000pcs/month

Anti-corrosion ATEX Explosion-proof Plug and Socket 16A 32A 63A for Hazardous Environments

Description
Voltage: 220/380VAC Protection Level: IP66
Phase: Explosion Proof Plug&Socket Application: Industrial
Ex Mark: Ex D E IIC T6 Gb Explosion Proof Rating: Class I, Division 1, Groups C & D
Current Rated:: 16A,32A,63A

Factory price 16A 32A 63A GRP material 220VAC anti corrosion and explosion proof 4Pins plug and socket

Product Description:

This Explosion Proof Plug and Socket carries the Ex D E IIC T6 Gb certification, ensuring compliance with stringent safety standards for hazardous environments containing explosive gases and dust. Its IP66-rated enclosure provides superior resistance to dust and water ingress, making it highly durable in extreme industrial conditions.

Available in 16A, 32A, and 63A configurations, this connector offers versatile power solutions tailored to different operational demands. Additionally, its Class I, Division 1, Groups C & D explosion-proof classification confirms its suitability for high-risk settings—including chemical processing plants, oil refineries, and other industrial facilities where flammable substances may be present.

Engineered for reliability, this robust plug and socket assembly delivers secure electrical connectivity while mitigating explosion hazards in challenging work environments.



Features:

  • Product Name: Explosion Proof Plug and Socket
  • Ex Mark: Ex D E IIC T6 Gb
  • Material: GRP/Aluminum
  • Rated Current: 16A, 32A, 63A
  • Protection Level: IP66
  • Application: Hazardous Location
  • Features:
    • Blast-Proof Plug and Socket
    • Intrinsically Safe Plug and Socket
    • Hazardous Location Plug and Socket


Technical Parameters:

Type Plug & Receptacle
Ex rate Ex d e IIC T6 Gb
Rated Current [A] 16 32 63
Rated voltage 220/380VAC
Degree of protection IP65
Entries
M25*1.5 (suitable for
Φ8mm-Φ17mm cable)
M40*1.5 (suitable for
Φ13mm-Φ27mm cable)
M40*1.5 (suitable for
Φ13mm-Φ27mm cable)
The cable for plug Φ8mm-Φ19mm Φ12mm-Φ28mm Φ12mm-Φ28mm


Applications:

1. Gas stations - During the refueling and unloading process, gasoline can easily evaporate, forming flammable vapors. These vapors, when mixed with air and exposed to sparks, can explode.

2. Chemical plant reaction rooms - During the production process, pipes and valves may leak flammable and explosive gases or solvent vapors such as benzene, alcohols, and ethers.

3. Coal mine tunnels - Coal seams continuously emit methane (gas), and mining operations generate large amounts of combustible coal dust, creating a typical explosive environment.

4. Flour mill grinding rooms - Grain processing generates airborne flour dust, which, when reaching a certain concentration, can cause a dust explosion when exposed to an ignition source.

5. Automotive paint spray booths - Paint mist and solvent vapors emitted by thinners (such as thinner) used during spraying are both flammable and explosive.

6. Gas boiler rooms/pressure regulating stations - Natural gas (primarily methane) pipelines and valves may leak, and accumulation can create an explosive atmosphere.

7. Alcohol/Liquor Bottling Plant - Alcohol (ethanol) is highly volatile. In a confined space, its vapor can form an explosive mixture when mixed with air.

8. Aluminum/Magnesium Alloy Grinding and Polishing Plant - Aluminum and magnesium powders generated during processing are flammable metal dusts that can explode violently when exposed to open flames or high temperatures in air.

9. Anaerobic Tanks in Sewage Treatment Plants - The sewage treatment process produces methane (primarily methane) as a byproduct, which can easily accumulate in tanks or pumping stations.

10. Solvent/Paint Warehouses - Flammable liquids (such as toluene) stored in centralized locations continuously evaporate, and vapor concentrations can easily reach explosion limits in the absence of adequate ventilation.



Support and Services:

The Explosion Proof Plug and Socket product offers technical support and services to ensure proper installation and safe operation in hazardous environments. Our team of experts is available to provide guidance and answer any questions regarding product specifications, compatibility, and maintenance. We also offer repair and replacement services to minimize downtime and ensure maximum efficiency of the product.

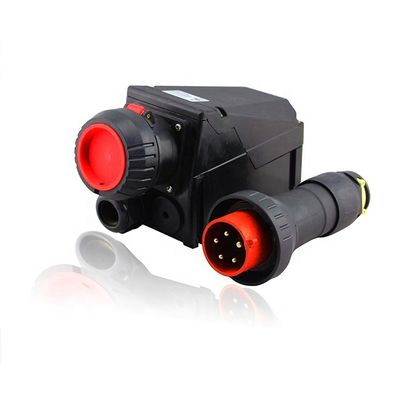

 Anti-corrosion ATEX Explosion-proof Plug and Socket 16A 32A 63A for Hazardous Environments 0

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is Crown Extra.

Q: What is the model number of this product?

A: The model number of this product is AC8060.

Q: Where is this product manufactured?

A: This product is manufactured in China.

Q: Is this product explosion proof?

A: Yes, this product is explosion proof.

Q: What type of plug and socket does this product have?

A: This product has an explosion proof plug and socket.
