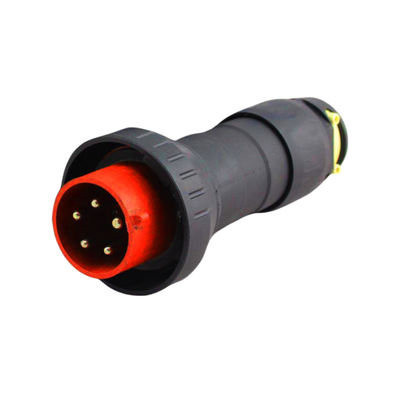

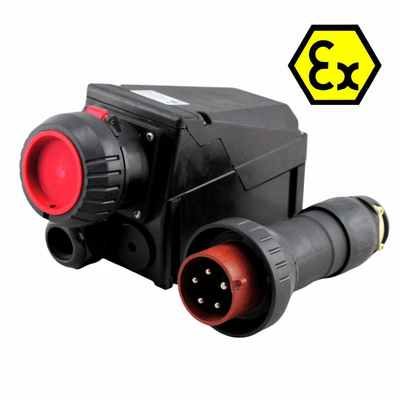

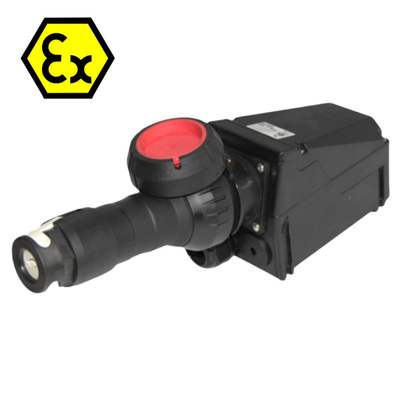

ATEX Explosion Proof Plug and Socket for Natural Gas Processing and CNG/LNG Filling Stations

Applications

Oil drilling platforms and refineries

Flammable gases such as methane and propane are present, and explosion-proof switches can prevent explosions caused by electric sparks.

Chemical production workshops and warehouses

Volatilization of solvents such as ethanol can create explosive environments, requiring explosion-proof switches to control equipment.

Underground coal mine tunnels

In areas where gas (methane) accumulates, explosion-proof switches are used to prevent sparks from igniting the gas.

Grain processing plants (flour and starch plants)

High dust concentrations can cause explosions when exposed to sparks, and explosion-proof switches ensure safe startup and shutdown of equipment.

Gas stations and fuel storage tank areas

Gasoline vapors are concentrated, and explosion-proof switches are used to control pumps, lighting, and other equipment.

Ship engine rooms and offshore platforms

Fuel vapors can easily accumulate in confined spaces, and explosion-proof switches are used to prevent fires and explosions.

Aerospace fuel filling areas

Explosion-proof electrical controls are required near aviation kerosene and rocket fuel.

Biogas plant in a sewage treatment plant

Explosion-proof switches are mandatory in environments with methane (CH₄) and hydrogen sulfide (H₂S) gases.

How do I determine whether I need explosion-proof lighting?
Simply put, if a location is classified as an "explosive atmosphere" and has been clearly divided into explosion-hazardous zones (e.g., Zone 0, Zone 1, Zone 2; Zone 20, Zone 21, Zone 22) according to national standards (such as China's GB3836), then all electrical equipment within that area, including lighting, must use explosion-proof products of the corresponding explosion-proof grade and type.

Key keywords: flammable gases, flammable vapors, combustible dusts, and flammable fibers. Whenever these substances may be present in the work environment, the use of explosion-proof electrical equipment must be prioritized to ensure the safety of life and property.



Technical Parameters​





Type	Plug & Receptacle
Ex Rate	Ex d e IIC T6 Gb
Rated Current【A】	16	32	63
Rated Voltage	220/380VAC
Degree of protection	IP66
Entries	M25*1.5 (suitable for Φ8mm-Φ17mm cable)	M40*1.5 (suitable for Φ13mm-Φ27mm cable)	M40*1.5 (suitable for Φ13mm-Φ27mm cable)
The cable for plug	Φ8mm-Φ19mm	Φ12mm-Φ28mm	Φ12mm-Φ28mm
