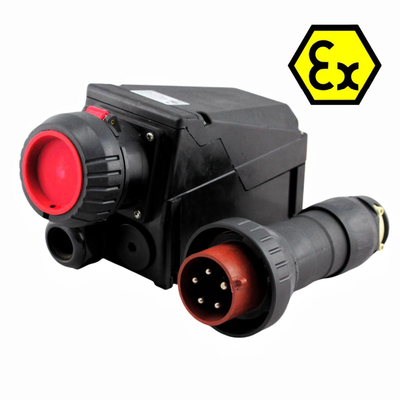

Explosion Proof Plug and Socket for Hazardous and Flammable Materials in Petroleum and Chemical Industries

Applications

1. Grain and Food Processing Industry

Grain Processing: Flour mills, sugar mills, starch mills, feed processing plants, granaries, etc. When airborne grain dust (such as flour, powdered sugar, and starch) reaches a certain concentration and encounters an ignition source, it can cause a violent dust explosion.

Food Processing: Cooking oil production plants, alcohol breweries, etc.

2. Textile and Wood Processing Industry
Textile mills: The processing of cotton, linen, wool, and other fibers produces large amounts of flammable fiber fluff and dust.

Wood Processing: Sawmills, furniture factories, and paper mills generate flammable wood dust.

3. Other Locations with Potentially Hazardous Environments
Sewage Treatment Plants: Sewage tanks, pumping stations, and other areas may produce flammable and toxic gases such as methane (biogas) and hydrogen sulfide.

Automotive Spray Paint Shops: Paint spray booths are filled with flammable paint solvent vapors.

Storage and Logistics: Warehouses, ports, and docks that store flammable materials such as paint, alcohol, and solvents.

Laboratories: chemical laboratories and biological laboratories involving flammable and explosive chemicals.

Housing: GRP

Exterior: Stainless steel





Technical Parameters​





Type	Plug & Receptacle
Ex Rate	Ex d e IIC T6 Gb
Rated Current【A】	16	32	63
Rated Voltage	220/380VAC
Degree of protection	IP66
Entries	M25*1.5 (suitable for Φ8mm-Φ17mm cable)	M40*1.5 (suitable for Φ13mm-Φ27mm cable)	M40*1.5 (suitable for Φ13mm-Φ27mm cable)
The cable for plug	Φ8mm-Φ19mm	Φ12mm-Φ28mm	Φ12mm-Φ28mm
