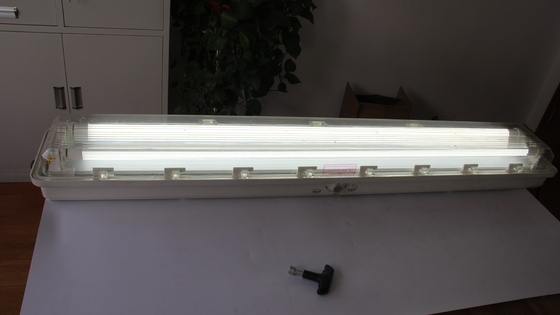

IP66 Explosion Proof Fluorescent Tube Light – T5/T8 Flameproof Lighting for Hazardous Areas

T5/T8 Explosion Proof Fluorescent Light IP66 Ex-proof fluorescent lighting

Features of the product:
1. Scope of application: zone 1, zone2, zone21, zone22 hazardous area locations
IIA, IIB explosive gas atmosphere
2. The shell is made of ZLIO2 aluminum alloy die-casting, and the surface is high-voltage electrostatic spray
3. Tempered glass cover, with strong impact resistance
4. Both steel pipe and cable wiring are acceptable
5. Thread only: G3/4”

technical parameter:
Rated voltage: AC220V50/60HZ, rated power: 9Wx1, 9Wx2 (type l) 18Wx1x 18Wx2 (type ll)

Explosion-proof mark: ExdembllCT6Gb/ExtDA21 IP66T80°C, protection level: IP66, corrosion protection level: WF2

Optional function: human body induction.
Lead-in device: M25X1.5 lead-in specification, suitable for 9mm~12mm cables, terminal block: W4mm, reliable wire connection

Installation method: Ceiling type (X), wall type (b), boom type 1 (g1), boom type 2 (g2), guardrail type (h), flange type (f), hanging chain type (L ), curved rod type (w)
