380V-5P Explosion Proof Switch Socket Outlet – IP66 Waterproof Industrial Plug, Connector for Hazardous Areas

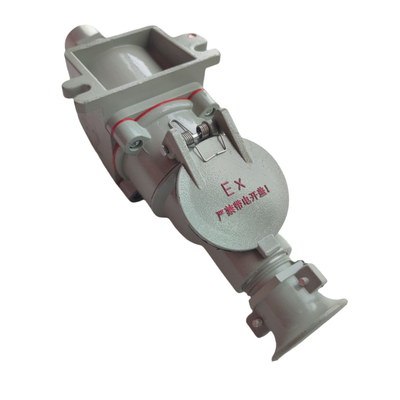

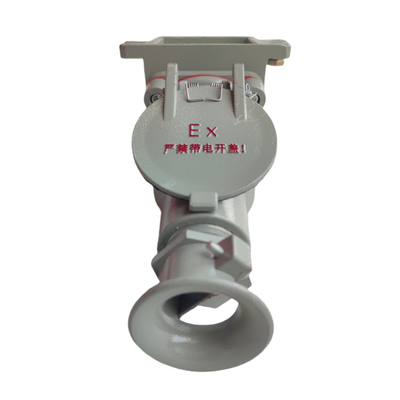

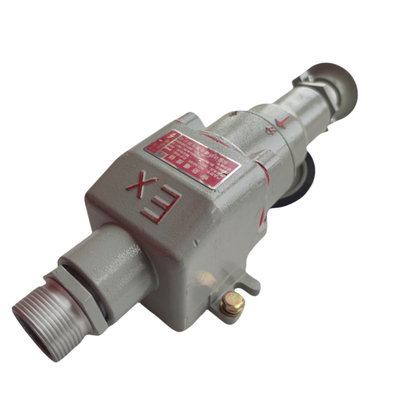

Large Image : 380V-5P Explosion Proof Switch Socket Outlet – IP66 Waterproof Industrial Plug, Connector for Hazardous Areas

Product Details:

Place of Origin:	CHINA
Brand Name:	CROWN EXTRA
Certification:	ATEX,CE,CNEX,ISO,RoHS
Model Number:	AC

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	negotiable
Packaging Details:	1SET/CTN
Delivery Time:	5-7 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10000 Per Month

Contact Now

380V-5P Explosion Proof Switch Socket Outlet – IP66 Waterproof Industrial Plug, Connector for Hazardous Areas

Description

Applications

1.A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present

2.Areas requiring frequent on-and-off of lights or power cycling- no warm up time required

3.Areas with high energy costs

4.Typical applications include:

Oil and gas industries

Chemical, petrochemical

Pharmaceutical industries

Pulp and Paper

Waste and sewage treatment

Features
1. Aluminum alloy die-casting shell, high-speed shot peening treatment, surface high-voltage electrostatic spraying, corrosion resistance, anti-aging.
2. Stainless steel exposed fasteners, high corrosion resistance.
3. The plug has built-in interlocking mechanism. Only when the switch in the socket breaks, the plug can be pulled out.
4. Steel pipe or cable wiring is acceptable

380V-5P Explosion Proof Switch Socket Outlet – IP66 Waterproof Industrial Plug, Connector for Hazardous Areas 0

Model NO	AC
Ex Rate	Ex d e IIC T6 Gb
Rated Current【A】	16	32	63
Grounding	Sandard grounding
Degree of protection	IP66
Entries	M25*1.5 (suitable for Φ8mm-Φ17mm cable)	M40*1.5 (suitable for Φ13mm-Φ27mm cable)	M40*1.5 (suitable for Φ13mm-Φ27mm cable)
The cable for plug	Φ8mm-Φ19mm	Φ12mm-Φ28mm	Φ12mm-Φ28mm

Tag:

Contact Person: Ms. Ivy

Tel: 18951239295

Fax: 86-519-83987298
