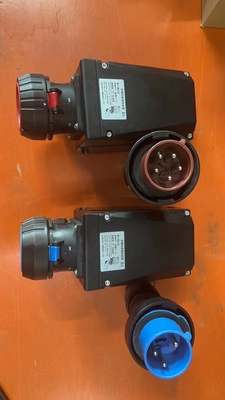

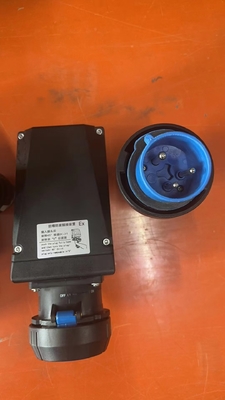

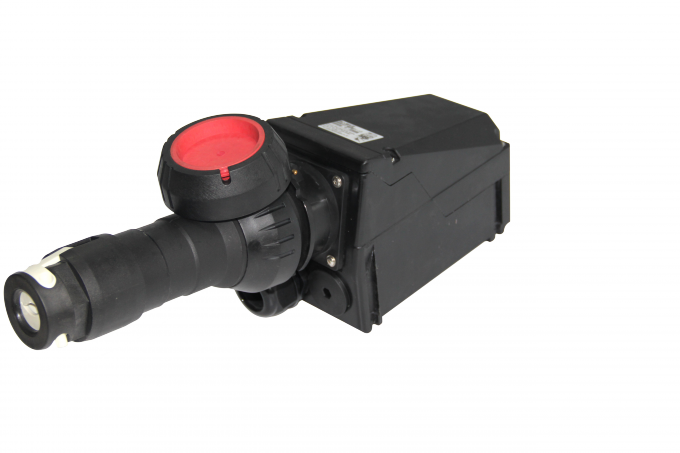

ATEX Certified GRP Explosion Proof Plug and Socket – 3P+E / 4P, 16A 32A 63A Industrial Flameproof Connector for Hazardous Areas

Large Image : ATEX Certified GRP Explosion Proof Plug and Socket – 3P+E / 4P, 16A 32A 63A Industrial Flameproof Connector for Hazardous Areas

Product Details:

Place of Origin:	CHINA
Brand Name:	CROWN EXTRA
Certification:	ATEX,CE,CNEX,ISO,RoHS
Model Number:	AC

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	N
Packaging Details:	1SET/CTN
Delivery Time:	5-7 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10000 Per Month

Contact Now

ATEX Certified GRP Explosion Proof Plug and Socket – 3P+E / 4P, 16A 32A 63A Industrial Flameproof Connector for Hazardous Areas

Description

Highlight:

ATEX certified explosion proof plug

industrial flameproof socket hazardous areas

GRP explosion proof connector 63A

Applications

1.A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present

2.Areas requiring frequent on-and-off of lights or power cycling- no warm up time required

3.Areas with high energy costs

4.Typical applications include:

Oil and gas industries

Chemical, petrochemical

Pharmaceutical industries

Pulp and Paper

Waste and sewage treatment

Standard Materials

Housing: GRP

Exterior: Stainless steel

Technical Parameters

ATEX GRP Explosion Proof Plug And Socket – 3P+E / 4P 16A 32A 63A Industrial Flameproof Electrical Connector 0

Type	Plug & Receptacle
Ex Rate	Ex d e IIC T6 Gb
Rated Current【A】	16	32	63
Rated Voltage	220/380VAC
Degree of protection	IP66
Entries	M25*1.5 (suitable for Φ8mm-Φ17mm cable)	M40*1.5 (suitable for Φ13mm-Φ27mm cable)	M40*1.5 (suitable for Φ13mm-Φ27mm cable)
The cable for plug	Φ8mm-Φ19mm	Φ12mm-Φ28mm	Φ12mm-Φ28mm

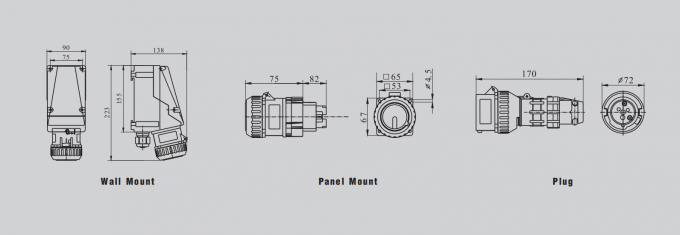

Dimension & Installation [mm]
