Product Details:
|
Anticorrosion Grade: | WF2 | Operating Temperature: | -40°C To 55°C |
---|---|---|---|
Ex Mark: | ExdIICT6 | Model: | GYD970 |
Flashlight Type: | Rechargeable Flashlight | Cct: | 5000K |
Lumens: | 6000 Lumens | Life Time: | 50000hours |
Watt: | 200w | Wateproof: | Ip66 |
Lamp Body Material: | Aluminum,Stainless Steel | Lens Material: | Tempered Glass |
Storage Temp: | -30 - +55C | Waterproof: | IP66 |
Led Chips: | PLiP3030 | ||
Highlight: | Outdoor LED Explosionproof Flood Light,240W LED Explosionproof Flood Light,ATEX IECEx LED Flood Light |

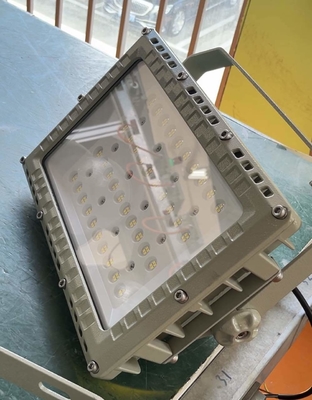

1. The shell adopts good quality cast aluminum, good quality toughened glass lampshade, with guard.
2. The lamp body adopts seal structure, has high waterproof performance and anticorrosive performance.3. Conform to GRADE ENTRY NORMS FOR STEEL SHIPS. and Nationalstandard GB3836-2000. GB12045
Specification
A | B | C | D | E | F | G | H | |
GYD970-1 | 304 | 264 | 219 | 180 | 126 | 216 | 227 | 219 |
GYD970-2 | 384 | 344 | 273 | 240 | 126 | 255 | 277 | 273 |
GYD970-3 | 472 | 418 | 315 | 275 | 130 | 295 | 320 | 315 |
GYD970-4 | 544 | 492 | 371 | 330 | 130 | 341 | 374 | 371 |
