16A GRP Zone 2 Class 1 Division 2 Disconnect Switch Explosion Proof Emergency Stop Button One

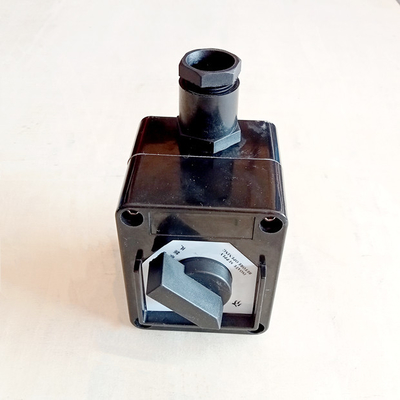

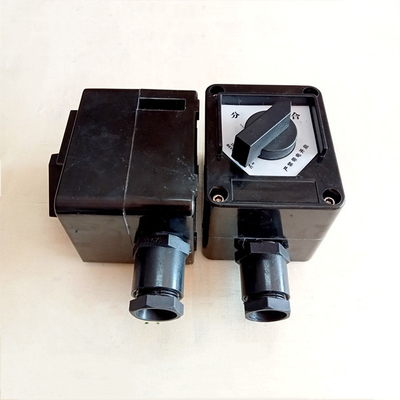

Large Image : 16A GRP Zone 2 Class 1 Division 2 Disconnect Switch Explosion Proof Emergency Stop Button One

Product Details:

Place of Origin:	CHINA
Brand Name:	CROWN EXTRA
Certification:	IECEx,ATEX,CE,CNEX,ISO,RoHS
Model Number:	ZXF8030

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	negotiable
Packaging Details:	1SET/CTN
Delivery Time:	5-7 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10000 Per Month

Contact Now

16A GRP Zone 2 Class 1 Division 2 Disconnect Switch Explosion Proof Emergency Stop Button One

Description

Terminal Type:	Screw Terminal	Rated Current:	16A
Housing Material:	Aluminum	Dustproof:	Yes
Application:	Chemical Industry	Ex Marking:	Ex Db IIC T6 Gb,Ex Tb IIIC T80°C Db
Current:	10A	Intended Use:	Zone 1&2, Zone 21&22
Fireproof Grade:	WF2,	Material:	Stainless Steel
Voltage:	AC 120-240V	Switch Type:	Single Pole, Single Throw (SPST)
Function:	ON-OFF	Operating Temperature:	-20°C To 60°C
Highlight:	16A Explosionproof Emergency Stop Button , 16A Explosion Proof Switch

Class 1 Div 2 Light Switch One Button Explosion Proof Switch

Applications:

For explosive atmospheres Zone 1 and Zone 2;
For combustible dust Zone 21 and Zone 22;
For: IIA, IIB and IIC groups explosive atmospheres;
For temperature classifications T1/T6/T5/T4;
For explosive hazardous locations such as oil refinery, storage, chemical, pharmaceuticals, textile, printing, military industries, etc.

Specification:

Implementing the standard:	GB3836.1-2000, GB3836.2-2000,
Explosion proof:	Ex d e IIC T6 Gb/ Ex tD A21 IP65 T80°
Rated voltage:	AV220V /50 Hz
Protection grade:	IP65
Corrosion proof grade:	WF1/WF2
Inlet's spec:	G3/4''
Weight:	0.7kg

Features:

The housing is GRP material, with high voltage static plastic sprayed surface.
The product is single-pole switch.
With safety increased shell, inside is adopted flame-proof switch.
Water-proof, dust-proof, corrosion proof

Conduit wiring or cable wiring.

Tag:

Contact Person: Ms. Ivy

Tel: 18951239295

Fax: 86-519-83987298
