High Flow Rate Spark Proof Explosion Proof Exhaust Fan for Class 1 Div 2 - ATEX Certified Enclosure Fan for Hazardous Areas

High Flow Rate Spark Proof Explosion Proof Exhaust Fan for Class 1 Div 2 - ATEX Certified Enclosure Fan for Hazardous Areas
High Flow Rate Spark Proof Explosion Proof Exhaust Fan for Class 1 Div 2 - ATEX Certified Enclosure Fan for Hazardous Areas High Flow Rate Spark Proof Explosion Proof Exhaust Fan for Class 1 Div 2 - ATEX Certified Enclosure Fan for Hazardous Areas

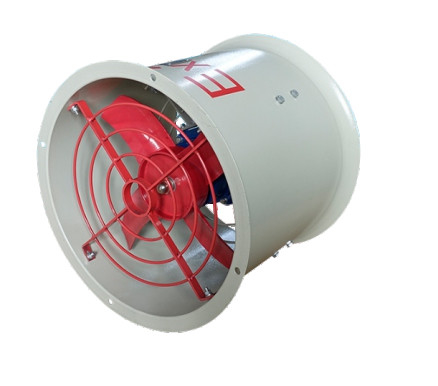

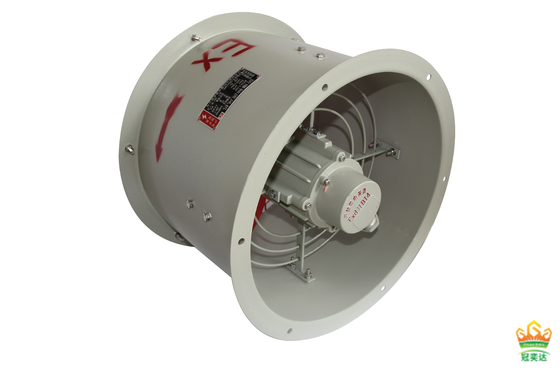

Large Image :  High Flow Rate Spark Proof Explosion Proof Exhaust Fan for Class 1 Div 2 - ATEX Certified Enclosure Fan for Hazardous Areas

Product Details:
Place of Origin: CHINA
Brand Name: CROWN EXTRA
Certification: ATEX,CE,CNEX,ISO,RoHS
Model Number: CBF
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: 1SET/CTN
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 10000 Per Month
Contact Now

High Flow Rate Spark Proof Explosion Proof Exhaust Fan for Class 1 Div 2 - ATEX Certified Enclosure Fan for Hazardous Areas

Description
Cooling Capacity: 2.2 - 12.5 KW Protection: IP54 WF2
Mounting: Wall Ex Rate: Ex D IIB T4 Gb
Type: Upright Or Wall Mounted Blade Size: 300mm
Noise Level: 27/28dB-A Ip Degerr: IP65
Use Area: Hazardous Zone1 Division1 Max Air Flow: 305.29CFM
Warranty: 1 Year Limited Frame Material: Aluminum Alloy
Degree Of Protection: IP54 Function Range: FG RD PWM IP58 IP68
Cfm: 2273-18250m³/h

220V BT35-11High Flow Rate Ventilation Exhaust Explosion proof Industrial Axial Flow FansExplosion Proof Industrial Axial Flow Fan Exhaust Fan Bower Application:

1.Hazardous:division 1&2,or 20,21,&22; 2.Explosive gas atmospheres:class II A ,II B ,II C or inflammable dust environment. 3.Indoor or outdoor(IP65). 4.Temperature class:T1-T6; 5.Widely using in the fields of oil,Chemical industry,spaceflight,war industry and so on.

Specifition:

Type BAF Type BAF Type BTS Type
Ex rate Ex d IIB T4 Gb
Degree of protection IP54
Rate voltage 220V/380V AC
Size of blade(mm) 300,400,500,600 315,400,500,600 500,600,750
Power consumption(W) 120,180,250,370 180,250,550,750,1500 370,550,750
Air volume(m³/min) 2200,2400,4900,9500 2273,4687,9133,18250 6000,9600,18000

Applications for Explosion Proof Axial Flow Fan:

— A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
— Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
— Areas with high energy costs
— Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation



Installation for Axial Flow Fan and Blower:

-Wall Mount

-Pipe Type

-Position Type

-Fixed Type

Tag:

class 1 div 1 exhaust fan,

explosion proof cooling fan,

explosion proof duct exhaust fan
