Product Details:
|
| Porduct Name: | 300mm 400mm 500mm 600mm 110V 220V 380V Portable Explosion Proof Fan | Model Number: | BAF |
|---|---|---|---|
| Size Of Blade(mm): | 315; 400; 500; 600 | Power Consumption [W: | 2 |
| Air Volume [m³/min: | 2 | Ex Rate: | Ex D IIB T4 Gb |
| Degree Of Protection: | IP54 | Use Area: | Zone 1&2, Zone 21&22 |
| Description: | With Explosion-proof Motor | Optional: | Different Impeller Speed Or Motor Power, Air Flow For Choice BFC |
| High Light: | battery room exhaust fan explosion proof,8 explosion proof exhaust fan 220V 380V,6 inch explosion proof exhaust fan 220V 380V |
||

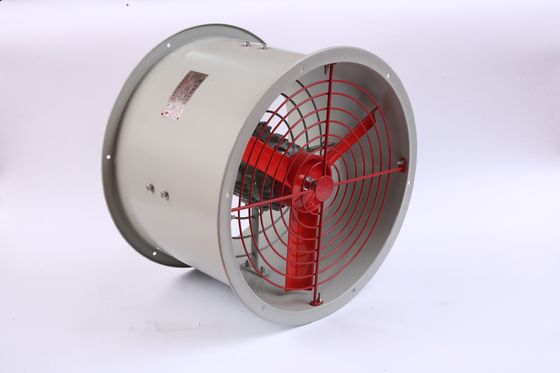

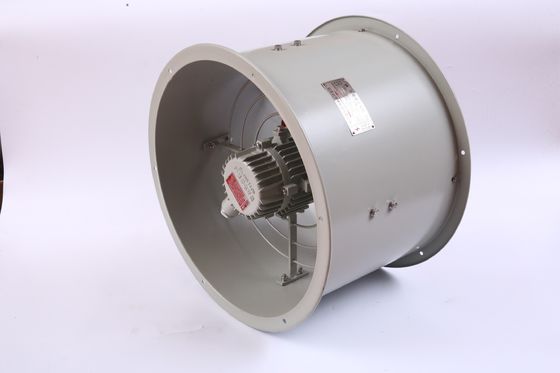

300mm 400mm 500mm 600mm 110V 220V 380V Portable Explosion Proof Fan
Explosion Proof Industrial Axial Flow Fan Exhaust Fan Bower
| Type | BAF Type | BAF Type | BTS Type |
| Ex rate | Ex d IIB T4 Gb | ||
| Degree of protection | IP54 | ||
| Rate voltage | 220V/380V AC | ||
| Size of blade(mm) | 300,400,500,600 | 315,400,500,600 | 500,600,750 |
| Power consumption(W) | 120,180,250,370 | 180,250,550,750,1500 | 370,550,750 |
| Air volume(m³/min) | 2200,2400,4900,9500 | 2273,4687,9133,18250 | 6000,9600,18000 |
Applications for Explosion Proof Axial Flow Fan:
— A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
— Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
— Areas with high energy costs
— Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Installation for Axial Flow Fan and Blower:
-Wall Mount
-Pipe Type
-Position Type
-Fixed Type
FAQ:
Q: What qualifications does your company have ?
A:Authorization of “AAA Grade Credit Enterprise” from Government
Q: Can I get qualified products? I do not want any shortage , damaged products
A: Professional Q.C. (quality control) Team & Testing Equipment Correspondent and Effective CCS, MED, CE Certificates
Exclusive and Famous Brand” KENPO,SEMPO,HOBOND,FASEAL ,GLM”
Q: How long is the delivery time?
A:1~15days Quick Delivery Time . Abundant Stock Items at Hand Big Stock Capacity Guarantee (10000㎡-Warehouse)Various Logistics Option(DHL, TNT, Rail/Air/Sea Freight)
