Product Details:
|
Voltage: | 120-277V AC | Light: | LED |
---|---|---|---|
Surface Treatment: | Aluminium Material | Tube: | T5 |
Efficiency: | 100lm/w | Ex Mark: | Exd IIB T6 Gb/Ex TD A21 IP65 T80℃ |
Led Lifespan: | 50000H | Application Place: | Zone1 And 2, Zone 21 And 22 |
Lumens: | 5,600 Lumens | Application: | Zone 1,2&Zone 21,22 |
Lamp Type: | Fluorescent | Mounting Styles: | Ceiling; Flange; Pendant,Wall |
Usage: | Oil Gas Mine Industry | Led Tubes Size: | 0.6m; 1.2m |
Corrosion Resistant: | WF2 | ||
Highlight: | Double Tube Explosion-Proof Lighting,IP66 Explosion-Proof Lighting,Wall Mount Explosion-Proof Lighting |

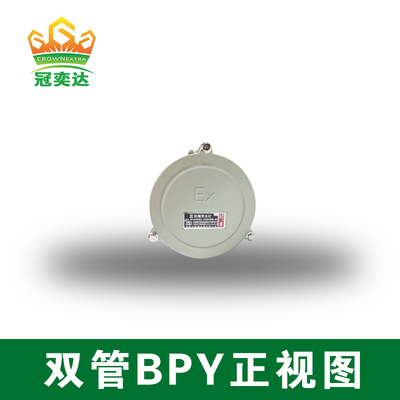

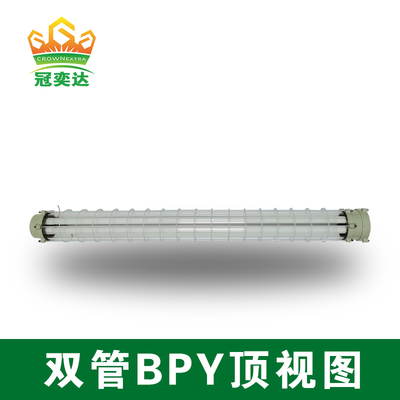

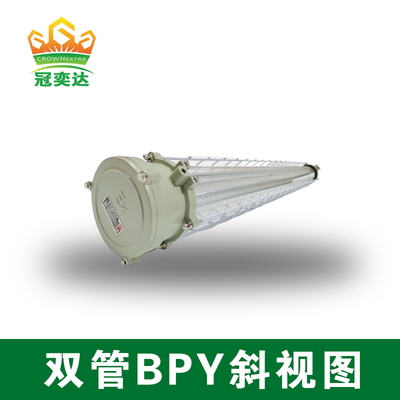

Explosion-Proof Double‑Tube BPY LED Light for Hazardous Industrial Environments
The Double‑Tube BPY Explosion‑Proof LED Light is engineered to deliver reliable, high‑performance illumination in the most demanding hazardous areas. Featuring two high‑efficiency LED tubes housed in a rugged die‑cast aluminum body, this fixture is ideal for applications in oil & gas, chemical processing, petrochemical, pharmaceutical, wastewater treatment, and power generation facilities.
Designed for Zone 1, Zone 2, Zone 21, and Zone 22 hazardous classifications, the Double‑Tube BPY light provides safe, compliant lighting where flammable gases, vapors, dust, or corrosive substances coexist. Its multiple mounting options—including ceiling, wall, and pendant installations—allow seamless integration into pipelines, storage tanks, reactor rooms, compressor stations, and offshore platforms. End users worldwide benefit from reduced downtime and simplified maintenance, thanks to its easy‑access end caps for fast tube replacement without special tools.
At the core of the Double‑Tube BPY is a pair of energy‑saving LED tubes driven by a high‑power-factor electronic ballast (COS φ > 0.95). Incoming AC power (100 – 277 VAC, 50/60 Hz) passes through the ballast, which regulates current and minimizes harmonic distortion. The LEDs convert most input energy into visible light, achieving luminous efficacy up to 135 lm/W, while generating minimal heat. Tempered glass diffusers ensure uniform beam distribution and prevent direct contact with hot components. The explosion‑proof “Ex d IICT4Gb” enclosure design confines any internal ignition, preventing flare‑outs in combustible atmospheres.
Power Consumption: 2 × 18 W (other options: 2 × 30 W, 2 × 40 W)
Input Voltage: 100 – 277 VAC / 24 V DC
Luminous Flux: up to 4,860 lm (2 × 18 W @ 135 lm/W)
Color Temperature: 5,500 – 6,000 K (Daylight White)
Color Rendering Index (CRI): ≥ 80
Ingress Protection: IP66
Corrosion Resistance: WF1 (salt spray)
Certifications: ATEX Ex d IICT4Gb, IECEx, CNEX, CE, RoHS, ISO 9001
Mounting Styles: Ceiling, Wall, Pendant, Chain, Embedded, Stanchion
Emergency Backup (Optional): > 90 min runtime, 24 h recharge, < 0.3 s start
The Double‑Tube BPY Light has been adopted across North America, Europe, the Middle East, and Asia Pacific, meeting NEC 500/505, IEC 60079, and GB 3836 regulatory standards. Multinational oil majors, chemical producers, and utility providers trust BPY fixtures for long‑life performance, ease of installation, and global compliance. Our robust supply chain ensures timely delivery and local support—from spare parts availability to on‑site technical guidance.
Why Choose Double‑Tube BPY?
Energy Efficiency: Reduce power consumption by up to 60% compared to traditional fluorescent fixtures.
Low Maintenance: Quick‑release end caps and standardized LED modules simplify service.
Safety First: Certified explosion containment prevents hazardous leaks from becoming ignition sources.
Versatile Deployment: Multiple tube lengths and mounting kits adapt to any industrial layout.
Elevate your hazardous‑area lighting with the Double‑Tube BPY Explosion‑Proof LED Light—where safety, efficiency, and compliance converge in a single, market‑proven solution.
