Product Details:
|
Ex Mark: | Ex D E IIC T6 Gb/ DIP A21 TA | Intended Used: | Zone1 & 2, Zone 21 & 22 |
---|---|---|---|
Input Voltage(v): | 220VAC, 50~60HZ | Power Consumption: | 40W |
Emitting Color: | 6000K | CRI: | ≥70 |
Tube Length: | 0.6m/1.2m | IP Degree: | IP66 |
Corrosion Resistant: | WF2 | Material: | Aluminum |
Application Scenarios: | Oil & Petrochemical Plants, Chemical Processing &Gas Stations & Fuel Storage | Mounting Styles: | Pendant; Ceiling; Chain; Embedded; Wall; Stanchion |
Highlight: | LED Explosion Proof Fluorescent Light,Stainless Steel LED Explosion Proof,Explosion Proof Fluorescent Light IP66 |
Key Words: Explosion proof light, ATEX LED light, IP66 explosion proof fixture, stainless steel LED light, T5 T8 explosion proof fluorescent, waterproof LED tube light, hazardous area lighting.
Product Features:
ATEX Certified Explosion Proof Design
Certified for use in hazardous areas with explosive gases and dust, ensuring maximum safety in Zone 1 & Zone 2 environments.
IP66 Waterproof & Dustproof Protection
High-grade IP66 rating provides excellent resistance against water jets, heavy rain, and dust ingress, ideal for harsh industrial conditions.
High-Quality Stainless Steel Housing
Durable 304/316 stainless steel body offers outstanding corrosion resistance, extending service life in oil & gas, chemical, and offshore environments.

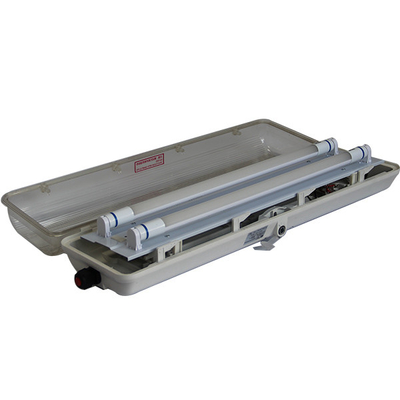

Compatible with T5 & T8 LED Tubes
Flexible design supports both T5 and T8 LED fluorescent tubes, allowing for easy retrofit or customized lighting solutions.
Energy-Efficient LED Technology
Delivers high lumen output with low power consumption, reducing energy costs while providing bright, reliable illumination.
Long Lifespan & Low Maintenance
LED light source with extended operational life, minimizing downtime and maintenance expenses.
Main technical parameters | |
Rated power (W) | 1×8/2×8 1×16/2×16 |
Rated voltage (V) | 110V-250V |
Luminous flux (LM) | 880/1760 1760/3520 |
Average service life of light source (h) | 80000 |
Protection class | IP66 |
Ex Mark | Ex edq II C T4 DIP A20 TA,T6 |
Lead in cable | φ10mm-φ14mm |
Introduction device | G3/4" |
Net weight (kg) | Single tube 5.4kg, double tube 6.1kg |
Parameters of T5 fluorescent lamp with emergency function are as follows: | |
Emergency starting time (S) | 0.3 |
Charging time (h) | 24 |
Emergency lighting time (min) | 90 |
