Product Details:
|
| Application Place: | Zone1 And 2, Zone 21 And 22 | Corrosion Resistant: | WF2 |
|---|---|---|---|
| Length: | 600mm/1200mm | Mounting: | Ceiling, Wall, Flangle, Pendant |
| Power Factor: | 0.98 | Lamp Luminous Efficiency: | 100lm/w |
| Packing List: | 1450*250*170mm, 11kg | Frequency: | 50/60Hz |
| High Light: | Stainless ex proof fluorescent light fixture,1200mm ex proof fluorescent light fixture,ex proof fluorescent light fixture 1200mm |
||

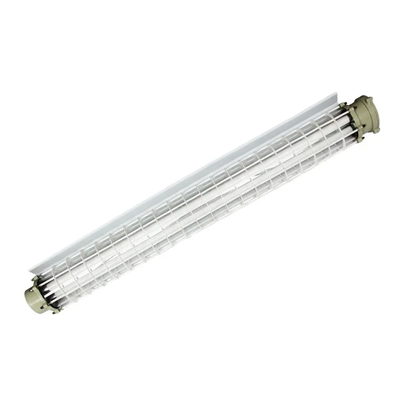

Our Explosion Proof Fluorescent Light is WF2 corrosion resistant, ensuring durability in harsh conditions. It can also accommodate cable outer diameters ranging from Ф6mm to Ф10mm.
The Ex Mark of our Explosion Proof Fluorescent Light is Ex Db Eb IIC T6 Gb/Ex Tb IIIC T80℃ Db, which means it has been certified for use in hazardous locations. This certification guarantees that the product has undergone rigorous testing and meets the highest safety standards.
The size of our Explosion Proof Fluorescent Light is L700*W700*H90, making it a perfect fit for a variety of industrial settings. Additionally, this product comes with a packing list measuring 1450*250*170mm and weighing 11kg.
Invest in our Blast Resistant Fluorescent Light Bulb and ensure the safety of your workers and equipment. With its rugged design and high-quality materials, this Explosion Resistant Fluorescent Light Fixture is the perfect solution for hazardous environments.
Looking for a reliable Explosion-Proof Fluorescent Fixture? Our Explosion Resistant Fluorescent Light Fixture is designed to withstand harsh environments and is perfect for use in Zone 1&2 areas. Featuring a WF2 corrosion-resistant design and a high level of protection with Safety Class Ⅱ, this product is built to last. With an Ex Mark of Ex Db Eb IIC T6 Gb/Ex Tb IIIC T80℃ Db, you can be sure that this Explosion Proof Fluorescent Light will provide reliable lighting even in the toughest conditions. The product comes with a 1450*250*170mm packing list and weighs 11kg.
| Technical Parameter | Value |
|---|---|
| Product Name | Fluorescent Light with Explosion Protection |
| Tube Number | 1 Tube, 2 Tubes And 3 Tubes |
| Power | 9/18/27/54w |
| Power Factor | 0.98 |
| Protection Class Level | Safety Class Ⅱ |
| Working Life Time | 50000H |
| Lamp Luminous Efficiency | 100lm/w |
| Corrosion Resistant | WF2 |
| Frequency | 50/60Hz |
| Mounting | Ceiling, Wall, Flangle, Pendant |
| Cable Outer Diameter | Ф6mm—Ф10mm |
| Product Type | Explosion Resistant Fluorescent Light Fixture |
| Ex Marking | Ex d e IIC T6 Gb/ DIP A21 TA |
| Classification | Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D; Zone 1, 2 & Zone 21, 22 |
| IP Degree | IP66 |
| Corrosion Resistant | WF1 |
| Input Voltage | 90-305VAC/50~60HZ or 24V DC |
| Battery Back-up | Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s |
| Conduit Entries | G 3/4" |
| Terminal | ≤2.5mm2 |
| Mounting Styles | Pendant; Ceiling; Chain; Embedded; Wall; Stanchion |
The Crown Extra BYS is available in 9/18/27/54w power options and can accommodate cable specifications between 9-14mm. This makes the product versatile enough to be used in various applications such as oil and gas platforms, chemical plants, and other potentially explosive environments.
The BYS model is designed with a 120-140℃ beam angle, which provides optimal illumination and visibility even in low light conditions. The fluorescent tube is also blast-proof, providing added safety to users in case of an explosion.
The Crown Extra BYS can be mounted on the ceiling, wall, flangle, or pendant, making it easy to install in any desired location. The product also comes with a minimum order quantity of 1SET and packaging details of 1SET/CTN, with a delivery time of 5-10 days.
With a price range of $50.00-$80.00, the BYS model is an affordable and effective solution for explosion-proof lighting. The payment terms are 50%+50%, ensuring that customers can purchase the product with ease. The product has a supply ability of 5000SET/month, making it readily available for large-scale orders.
Overall, the Crown Extra BYS Fluorescent Light with Explosion Protection is the perfect lighting solution for hazardous environments. Its blast-proof fluorescent tube and versatile mounting options make it a reliable choice for users in a wide variety of applications.
Our Explosion Proof Fluorescent Light product comes with comprehensive technical support and services to ensure optimal performance and safety. Our team of experts is available to assist with installation, troubleshooting, and maintenance to prolong the lifespan of the product and prevent any potential hazards.
We offer training and education on the proper use and handling of the product to ensure that our customers are knowledgeable and equipped to handle any situations that may arise. We also provide repair and replacement services to minimize downtime and maximize efficiency.
Our goal is to provide reliable and efficient products and services that meet the unique needs of our customers in hazardous environments. Contact us for more information on our technical support and services.
