Product Details:
|
| Packing List: | 1450*250*170mm, 11kg | Length: | 600mm/1200mm |
|---|---|---|---|
| Working Life Time: | 50000H | Zone: | Zone 1&2 |
| Ex Mark: | Ex Db Eb IIC T6 Gb/Ex Tb IIIC T80℃ Db | Power Factor: | 0.98 |
| Cable Specifications: | 9~14mm | Cable Outer Diameter: | Ф6mm—Ф10mm |
| Power: | 9/18/27/36/54/72w | CRI: | Ra:≥70 |
| High Light: | Ex Db Explosion Proof Fluorescent Light,Zone 1 Explosion Proof Fluorescent Light |
||
The product has a Safety Class II protection level, which means that it offers an extra layer of protection against electric shock. It is also certified with Ex Db Eb IIC T6 Gb/Ex Tb IIIC T80℃ Db, which indicates that it is suitable for use in explosive atmospheres that contain gases, vapors, or dust.
The Blast Proof Fluorescent Tube has a cable specification of 9~14mm, which makes it easy to install and connect to your power source. It operates on a frequency of 50/60Hz, ensuring that it delivers consistent and reliable performance over time.
Overall, the Explosion Proof Fluorescent Light is a highly durable and reliable product that is designed to provide safe and efficient lighting in hazardous environments. It is the perfect solution for industrial settings, chemical plants, and other applications where safety is a top priority.
Looking for an Explosion Resistant Fluorescent Light Fixture for hazardous locations? Our Blast Proof Fluorescent Tube is designed to meet your needs! With an Ex Mark of Ex Db Eb IIC T6 Gb/Ex Tb IIIC T80℃ Db, this light is suitable for use in Zone1 and 2, as well as Zone 21 and 22. It can be mounted on the ceiling, wall, flangle, or pendant and has a beam angle of 120-140℃. The Cable Outer Diameter is Ф6mm—Ф10mm.
| Product Attribute | Technical Parameters |

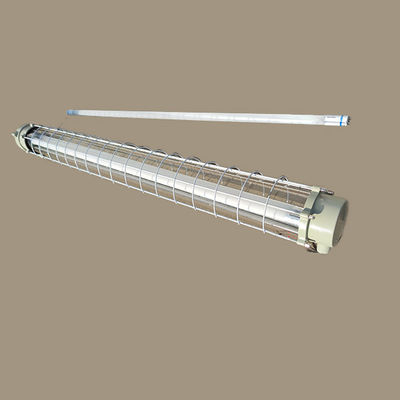

| Product Name | Fluorescent Light with Explosion Protection |
| Working Life Time | 50000H |
| Size | L700*W700*H90 |
| Beam Angle | 120-140℃ |
| Packing List | 1450*250*170mm, 11kg |
| Frequency | 50/60Hz |
| Lamp Luminous Efficiency | 100lm/w |
| Cable Specifications | 9~14mm |
| Length | 600mm/1200mm |
| Corrosion Resistant | WF2 |
| Ex Mark | Ex Db Eb IIC T6 Gb/Ex Tb IIIC T80℃ Db |
| Model NO. | BPY-I | BPY-II | BPY-III |
| T8Fluorescent tube | 20Wat | 30Watt | 40Wat |
| T5 Fluorescent tube | 14Watt | 21Watt | 28Watt |
| LED tube | 8Watt | 12Watt | 18Watt |
| Ex Marking | Ex d e IIC T6 Gb/ DIP A21 TA |
| Classification | Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D; Zone 1, 2 & Zone 21, 22 |
| IP Degree | IP66 |
| Corrosion Resistant | WF1 |
| Input Voltage | 90-305VAC/50~60HZ or 24V DC |
| Battery Back-up | Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s |
| Conduit Entries | G 3/4" |
| Terminal | ≤2.5mm2 |
| Mounting Styles | Pendant; Ceiling; Chain; Embedded; Wall; Stanchion |
The Crown Extra BYS Explosion-Proof Fluorescent Light has a power of 9/18/27/54w and a protection class level of Safety Class Ⅱ. It has a beam angle of 120-140℃ and a working life of up to 50000H. This product is suitable for application places such as Zone 1 and 2, Zone 21 and 22. The BYS model is designed to withstand the harsh conditions of hazardous locations and is ideal for use in chemical plants, oil refineries, mines, and other potentially explosive environments.
The Crown Extra BYS Explosion-Proof Fluorescent Light is a high-quality product that provides reliable lighting in hazardous locations. Its ATEX certification ensures that it meets the highest standards of safety and reliability. Its blast-resistant construction makes it a durable and long-lasting solution for use in hazardous environments. Whether you are working in a chemical plant, oil refinery, mine, or other potentially explosive environment, the Crown Extra BYS Explosion-Proof Fluorescent Light is the ideal lighting solution for your needs.
The Explosion Proof Fluorescent Light product has a technical support team that can answer any questions you may have regarding installation, operation, and maintenance of the product. Our team is knowledgeable about the product and can provide troubleshooting assistance if necessary.
In addition, we offer various services to ensure that your product is functioning at its best. These services include routine maintenance, repairs, and upgrades. We understand the importance of having reliable lighting in hazardous environments, and our goal is to provide you with the support and services needed to keep your lighting system operating effectively.
