High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex

Certification
China crown extra lighting co. ltd certification
China crown extra lighting co. ltd certification
I'm Online Chat Now

High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex

High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex
High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex

Large Image :  High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex

Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: Crown Extra
Certification: ATEX,CE,ROHS,CNEX,ISO9001
Model Number: GYD930
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD65-108 per pc
Packaging Details: CARTON、WOODEN BOX、PALLET
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 50000pcs/month

High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex

Description
Product Name: Explosion Proof Linear Lights/GYD930 Power: 40/50/80W
Voltage: 100-277VAC , 24VDC Efficiency: 100lm/w
CRI: Ra:≥80 CCT: 3000/4000/5000/5700K,other Colour Temperatures Can Be Customized
Certified: CNEX,EX,IP66,IEC,IECEX Mounting: Ceiling,Pendant,Flange
Light Source: LED Chips Zone: Zone1 And Zone2 Zone21 And Zone22

High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex​

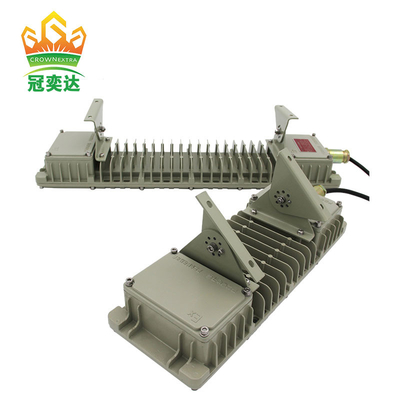

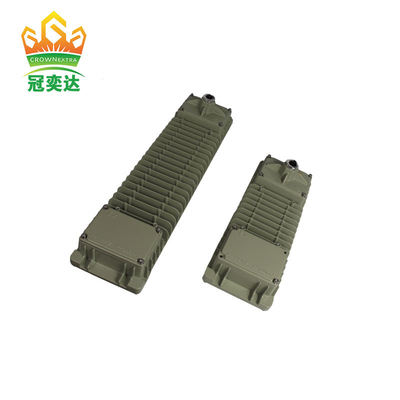

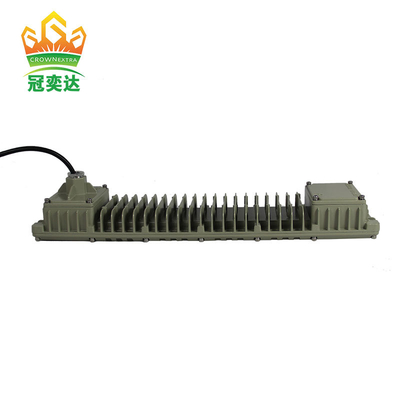

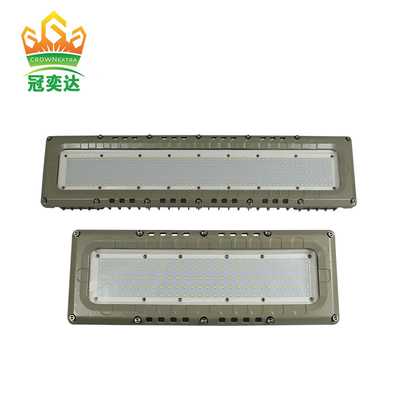

GYD930 Series

High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex 0

Features:

1.Zone 1 , Zone 2, Zone 21,Zone 22
2.Instant on crisp white light output
3.High efficiency drivers and LEDs provide low cost operation in harsh and heavy industrial applications
4.Isolated LED compartment reduces temperature within driver housing

5.Multi choice of beam angle for 45° 90°120°
Applications

Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations




Standard Materials
Housing:
Die-casting aluminum
Exterior:Stainless steel
Globe:
Tempered glass
Gasket:Silicon rubber




Certifications
ATEX
CNEX
CE
RoHS
ISO9001







Electrical Data
Ex MarkingEx nR eb mb IIC T5 Gc/ Ex tb IIIC T80℃ Dc
For use in
Zone 1, 2 & Zone 21, 22
Rated voltage
100-240VAC, 50-60Hz
Power factor
>0.95
THD
<20%
Degree of protection
IP66
Conduit EntriesG 3/4"
Terminal
≤2.5 mm²
Mounting Styles
Ceiling; Wall Bracket; Pendant



Luminous characteristics
Power consumption [W]
20-4040-6060-80
Colour rendering [CRI]
70 (±2)
Colour temperature [K]
6000-6500
Weight[kg]4.56.58
Luminaire efficiency [Lm/W]
115-130
Beam angle
120°


High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex 1
High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex 2
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
High Quality Wholesale 40w Linear Led Explosion Proof Light 0.6m1.2m 100lm/w 100-270VAC IP66 5 Years Warranty Atex 3
