Product Details:
|
| Ex Mark: | Ex E IIC T5 Gb,Ex TD A21 IP65 T80℃ | Input Voltage: | 220VAC, 50/60 Hz |
|---|---|---|---|
| Item Code: | Ex E Fluorescent Light | Mounting Styles: | Embedded |
| Size: | L700*W700*H90 | Used Zone: | ZONE 1 2 21 22 |
| Color Temperature(CCT): | 6000K (Daylight Alert) | Degree Of Protection: | IP54/IP65 |
| High Light: | IIC Explosion Proof Fluorescent Light,3tube Explosion Proof Fluorescent Light,Atex IP65 Fluorescent Light |
||

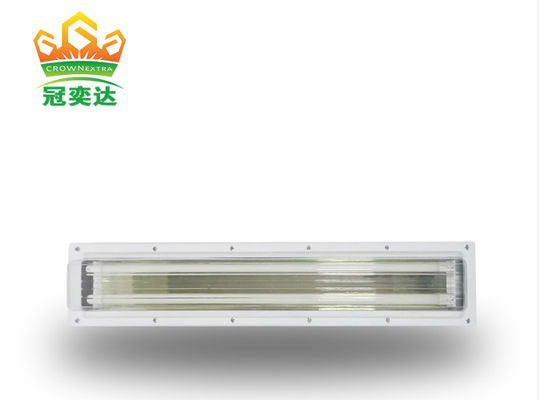

Atex IP65 IIC Explosion Proof Fluorescent Light 3tube 4tube
Features
1. Zone 2 & Zone 22;
2. SMC mold pressure shell, high strength, impact resistance, corrosion proof;
3. The sealing ring is made of high temperature resistant and anti-aging silicone rubber, which has good dustproof and waterproof performance;
4. Adopt a special structure, quickly replace the light source, install and maintain fast and convenient
5. Lampshade is formed by polycarbonate injection molding, high transmittance, strong ability towithstand shocks.
Use environment and purpose
1. The altitude does not exceed 2000 mts;
2. The working environment temperature is generally -20℃~ +45C;
3. The relative temperature of Zhouguo air is not more than 95% (+25C);
4. Zones 1 and 2 contain explosive gas atmospheres of groups I1A~NIB inflammation T1-T6, or zones 21,22 flammable powder in the environment;
5. In a place where there is no significant shaking, impact or vibration;
6. In the environment of gas or steam that does not damage the insulation;
7. Installation category: Type II
| Model | Voltage | LED Power | Cable od mm | protection grade | inlet thread |
| BHY-1*20 | 220V | 1*9W | 10*14mm | IP66/IP65 | G3/4" |
| BHY-2*20 | 2*9W | ||||
| BHY-3*20 | 3*9W | ||||
| BHY-4*20 | 4*9W | ||||
| BHY-1*40 | 1*18W | ||||
| BHY-2*40 | 2*18W | ||||
| BHY-3*40 | 3*18W | ||||
| BHY-4*40 | 4*18W | ||||
| Emergency start time | Charging time | emergency lighting time | |||
| 0.3s | 24h | 60min | |||
|
Type
|
BHY-I-600
|
BHY-I-1200
|
|
T8 Fluorescent tube
|
(1~3)*18Watt
|
(1~3)*36Watt
|
|
T5 Fluorescent tube
|
(1~3)*14Watt
|
(1~3)*28Watt
|
|
LED tube
|
(1~3)*8Watt
|
(1~3)*16Watt
|
| Size for Ceiling mount |
L770*W235*H140
|
L1370*W235*H140
|
|
Size for Ceiling mount
|
L770*W225*H115
|
L1370*W225*H115
|
|
Mounting Styles
|
Ceiling; Embedded
|
|
