Product Details:
|
| Item Type: | Explosion Proof Led Flood Light | Type No: | GYD720 |
|---|---|---|---|
| Wattange: | 50w,100w,150w,200w,240w | Luminaire Efficiency: | 130lm/w |
| Working Lifetime: | 50000hrs | Application Area: | Zone 1, 2 & Zone 21, 22 |
| Working Temperature(℃): | -20 - 60 | Application: | Gas Station,Chemical Industry,factory,gas/chemical Industry,Platform |
| Highlight: | ATEX Explosion Proof Flood Light,200w Explosion Proof Flood Light,Ip66 Waterproof Flood Light |
||

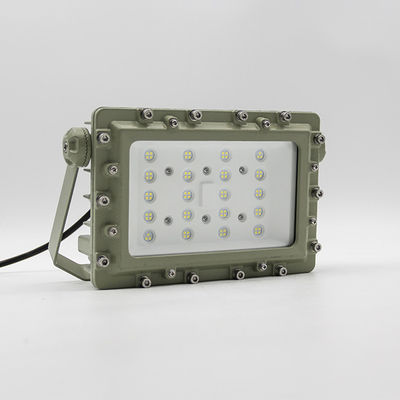

High Quality ATEX Anti Explosion Proof Flood Light 200w Ip66 Waterproof Light
Features
1. Zone 1&2, Zone 21&22
2. Instant on crisp white light output
3. n High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
4. n Isolated LED compartment reduces temperature within driver housing
5. n Multi choice of beam angle for 60° 90° 120°
Applications
Standard Materials:
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber
Electrical data
| Rated voltage | 100-240VAC, 50-60Hz |
| Power factor | >0.95 |
| THD | <20% |
Luminous characteristics
| Power consumption [W] | 50w | 100w | 150w,200w | 240w |
| Colour rendering [CRI] | 70 (±2) | |||
| Colour temperature [K] | 5500-6000K | |||
| Luminaire efficiency [Lm/W] | 120-130 | |||
| Beam angle | 120° (60°, 90° is optional) | |||
Mechanical data
| Degree of protection | IP66 | |||
| Cable entry | G 3/4” | |||
| Weight [kg] | 5.5 | 8.9 | 12.2 | 15.5 |
| Terminal | ≤2.5 mm² | |||
| Mounting Styles | Ceiling; Wall Bracket; Pendant | |||
