Product Details:
|
| Name: | 0.6m 1.2m Explosion Proof Fluorescent Light Dimmable T5 T8 Led Tube Light | Input Voltage(v): | 220VAC, 50~60HZ |
|---|---|---|---|
| Ex Mark: | Ex D E IIC T6 Gb/ DIP A21 TA | Ip Rating: | IP66 |
| Item Type: | Explosion Proof Fluorescent Light | Emergency: | Ballast Can Be Added |
| Warranty: | 1 Year | Illuminance: | 115 Lm/W |
| Intended Use: | Zone1 And 2, Zone 21 And 22 | Emitting Color: | 6000K |
| Tube Brand: | , Foshan, Op, Etc. | Material: | Explosion Proof ABS, Steel, LED Tube Etc |
| High Light: | Flame Proof Led Tube Light Dimmable 36 Inch,t8 led tube light 6000k,flameproof fluorescent light 6000K |
||

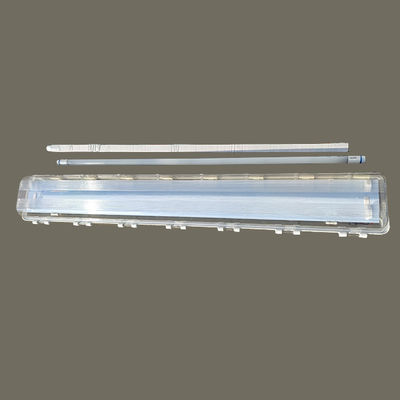

0.6m 1.2m Explosion Proof Fluorescent Light Dimmable T5 T8 Led Tube Light
Advantage:
1. The all-plastic explosion-proof LED fluorescent lamp shell is made of glass fiber reinforced polyester, and the transparent part is made of UV-resistant polycarbonate.
2. They have good protection against various chemical substances in petroleum, chemical, fuel and other factories.
3. High stability interlock operation. When the isolating switch is interrupted, the cover can be opened, and at the same time all internal power supplies will be cut off, blocking the risk of explosion.
4. It is internally equipped with high heat dissipation explosion-proof power supply module and explosion-proof inverter module, with constant current output function and over-temperature protection function.
5. The LED light source module uses the latest LED high-efficiency particles, with excellent luminous intensity and color rendering.
6. Used for 110~250V AC, 50/60Hz circuit lighting. Suitable for explosive gas and dust environment as general lighting or emergency lighting.
Installation method: ceiling type, chain type, pendant type, wall type and clip type. Platform fence type, platform flange type, wall type
The protection level reaches IP66.
With an interlocking device, the transparent part and the shell cannot be energized until they are completely closed to ensure safe use.
The emergency type has fault signal, charging signal, and discharging signal indication.
International IECEx certification, EU ATEX certification.
| No. | Name | Remark | No. | Name | Remark |
| 1 | Lamp | 12 | Pole | G1 1/2” | |
| 2 | Twin thread screw | M6/ M8 | 13 | Fasten plate | Provided by user |
| 3 | Junction Box | 14 | Bracket | ||
| 4 | Pipe connector | 15 | Steel pipe | ||
| 5 | Flexible pipe | Provided by user | 16 | Connection screw | |
| 6 | Bent pipe | G1 1/4” | 17 | Steel pipe | |
| 7 | Connector | 18 | Drawing plate | ||
| 8 | Pole | G1 1/2” | 19 | Steel pipe | |
| 9 | Connector | 20 | Emergency illumination | M6 for single type | |
| 10 | "U"Clamp | Provided by user | 21 | Twin thread screw | |
| 11 | Pipe Clamp | G1 1/4” | 22 | Steel pipe |
