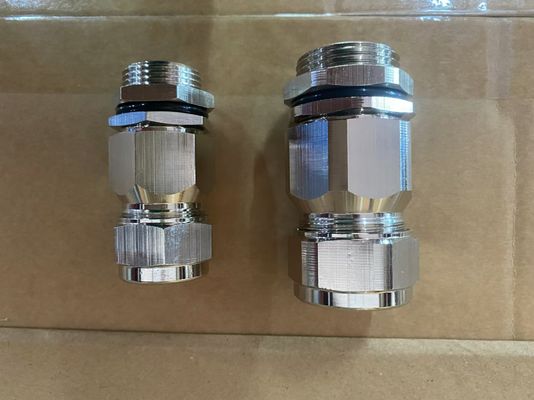

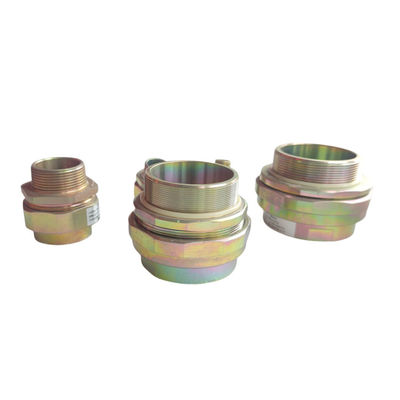

Triple-proof pneumatic cable connector Ex-proof stainless steel and carbon steel IP68 waterproof rating

Certification
China crown extra lighting co. ltd certification
China crown extra lighting co. ltd certification
I'm Online Chat Now

Triple-proof pneumatic cable connector Ex-proof stainless steel and carbon steel IP68 waterproof rating

Triple-proof pneumatic cable connector Ex-proof stainless steel and carbon steel IP68 waterproof rating
Triple-proof pneumatic cable connector Ex-proof stainless steel and carbon steel IP68 waterproof rating Triple-proof pneumatic cable connector Ex-proof stainless steel and carbon steel IP68 waterproof rating

Large Image :  Triple-proof pneumatic cable connector Ex-proof stainless steel and carbon steel IP68 waterproof rating

Product Details:
Place of Origin: Changzhou,Jiangsu,China
Brand Name: Crown Extra
Certification: CE,ROHS,ATEX,IECEx,ISO9001
Model Number: BHJ
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 1USD-10USD
Packaging Details: Carton Box
Delivery Time: 1-3days for small order,7-10days for bath order
Payment Terms: T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100000PCS per week

Triple-proof pneumatic cable connector Ex-proof stainless steel and carbon steel IP68 waterproof rating

Description
Product Name: Explosion Proof Brass Metal IP68 Waterproof Cable Gland Protection Level: IP68
Working Temperature: -40~+100 Degree Feature: Smooth Surface
Suitable Cable Diameter:: 10-14mm Ex Mark: Ex D IIC Gb
Type: A(Both Internal Threads), B(Internal And External Thread), C(both External Threads) Used Area: Zone 1&2, Zone 20&21&22
Material: Stainless Steel, Nickel Plated Brass Or Galvanized Carbon Steel Is Optional Certificates: CE ROHS ISO9001
Highlight:

Ex-proof stainless steel cable gland

,

IP68 waterproof cable connector

,

Triple-proof pneumatic cable gland

Wholesale high quality Explosion proof Brass Metal IP68 Waterproof Cable Gland



Explosion proof Brass Metal IP68 Waterproof Cable Gland



Product Description:

BHJ metal shielded cable connector Product material The metal part is TP304 stainless steel (316, 316L stainless steel, HPB59-1 copper nickel plating, 6061 aluminum, etc.)

Protection level IP68 ambient temperature -40°C-100°C
Feature description Used in conjunction with shielding/armoured cable, play the role of electrical shielding
Triple-proof pneumatic cable connector Ex-proof stainless steel and carbon steel IP68 waterproof rating 0


Specification:

Type Gland Size

Standard entry thread A Cable outer diameter B(mm) Minimum thread length C(mm) Nominal protrusion length D(mm) Across flats E(mm) Across corners F(mm) Weight(kg)
Min Max
20 M20 x 1.5 5 10 15 33 27 30 0.15
25 M25 x 1.5 9 14 15 33 32 35 0.15
32 M32 x 1.5 13 18 19 37 38 41 0.3
40 M40 x 1.5 17 24 19 40 47 50 0.5
50 M50 x 1.5 22 32 19 40 55 60 0.55
63 M63 x 1.5 31 44 19 53 68 72 0.7
75 M75 x 1.5 43 56 19 53 80 85 0.99

Triple-proof pneumatic cable connector Ex-proof stainless steel and carbon steel IP68 waterproof rating 1

Triple-proof pneumatic cable connector Ex-proof stainless steel and carbon steel IP68 waterproof rating 2

FAQ:

1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue . Please contact us on line or send an Email to sending the catalogue.

2. Q: do you have a price list ?
A: Yes, we have price list. But we have so many items,and it’s impossible tomark all of their price on a list. We will send offer according to your request.

3. Q: I can’t find the product on your catalogue, can you make this product for me?
A: Our catalogue just shows most of our products, Pls tell us your request and quantity you want, we will make you the offer
according to your request.

4. Q : Can you make customized products and customized packing?
A: Yes. We made a lot of customized products for our customer before .And we made many moulds for our customers already .
About customized packing , we can put your Logo or other info on the packing .

5. Q: Can you provide samples ? Are the samples free ?
A: Yes , we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking .But you have to pay for
the shipping cost .

6. Q : What about your delivery time?
A: We have a lot of products in stock . We can send the stock products in 3 work days.If without stock , or stock is not enough, we will check the delivery time with you.
