10 A CNEX Explosion‑Proof Rotary Transfer Selector Switch – Zone 1/2 & 21/22, 220 VAC, Aluminium”

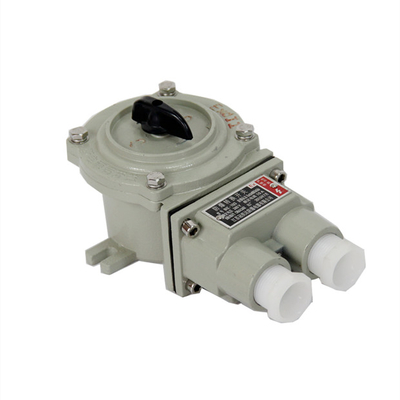

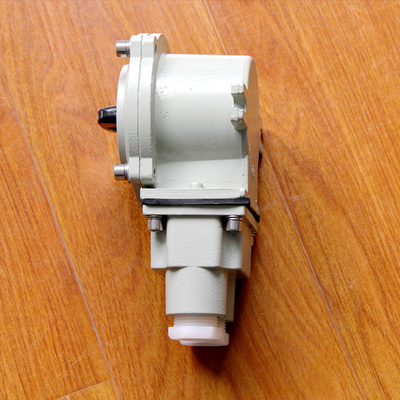

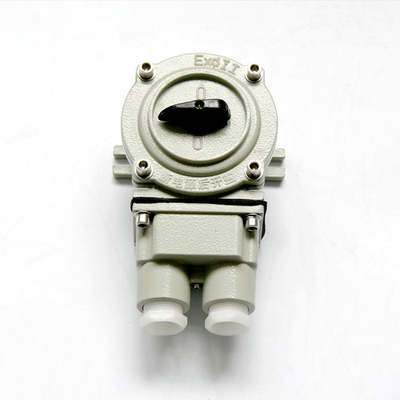

Large Image : 10 A CNEX Explosion‑Proof Rotary Transfer Selector Switch – Zone 1/2 & 21/22, 220 VAC, Aluminium”

Product Details:

Place of Origin:	CHINA
Brand Name:	CROWN EXTRA
Certification:	ATEX,CE,CNEX,ISO,RoHS
Model Number:	BHZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	negotiable
Packaging Details:	1SET/CTN
Delivery Time:	5-7 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10000 Per Month

Contact Now

10 A CNEX Explosion‑Proof Rotary Transfer Selector Switch – Zone 1/2 & 21/22, 220 VAC, Aluminium”

Description

Features:	Explosion Proof, Dust Proof, Corrosion Resistant	Rated Voltage:	220/380VAC
Housing Material:	Aluminum	Model:	XJ3-GD
Model No:	BHZ51-10	Rated Current:	10A
Ex Mark:	Ex D E IIB T6, DIP A21 TA, T6	Ex Marking:	Exe II T6 Gb, Ex TD A21 IP65
Protect Grade:	IP65	Function:	OFF ON
Current:	10A	Weight:	0.5 Kg
Voltage:	AC 380V	Ip Rating:	IP65
Type:	Explosion Proof Switch

Applications:

For explosive atmospheres Zone 1 and Zone 2;
For combustible dust Zone 21 and Zone 22;

Typical applications include: Oil and gas industries Chemical, petrochemical Pharmaceutical industries;

Pulp and Paper; Waste and sewage treatment

For temperature classifications T1/T6/T5/T4;
For explosive hazardous locations such as oil refinery, storage, chemical, pharmaceuticals, textile, printing, military industries, etc.
With overload, short circuit and under voltage protection, it is used for on-off of electrical apparatus and illumination circuit

Standard Materials:

Housing: Die-casting aluminum

Specification:

Type	Rated current	Inlet and outlet thread	Cable's spec
BHZ51-10A	10	3/4	9-14
BHZ51-25A	25	3/4	9-14
BHZ51-60A	60	1	11-18

Features:

The housing is die-casting in aluminum alloy, with high voltage static plastic sprayed surface.
The product is single-pole switch.
With safety increased shell, inside is adopted flame-proof switch.
Water-proof, dust-proof.
