ATEX Waterproof And Dustproof Explosion Proof Switch IP65 G 3/4" Aluminum

Certification
China crown extra lighting co. ltd certification
China crown extra lighting co. ltd certification
I'm Online Chat Now

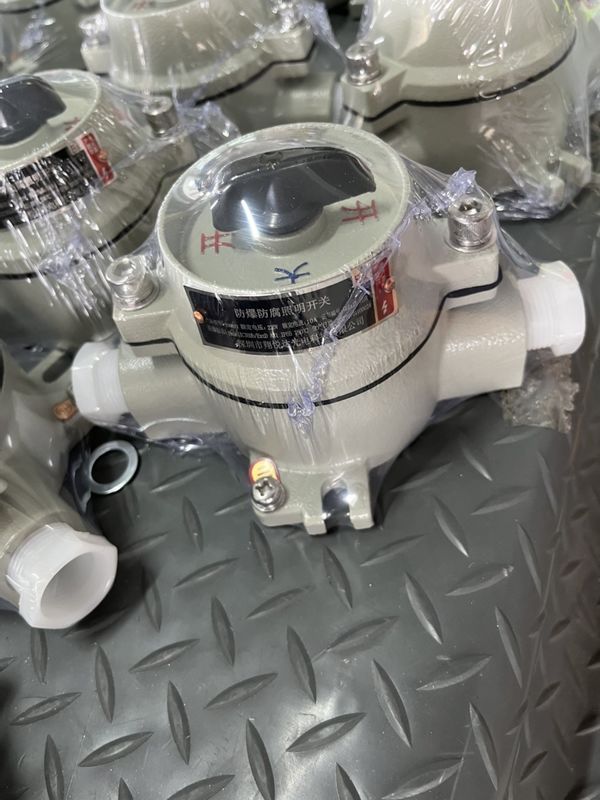

ATEX Waterproof And Dustproof Explosion Proof Switch IP65 G 3/4" Aluminum

ATEX Waterproof And Dustproof Explosion Proof Switch IP65 G 3/4" Aluminum
ATEX Waterproof And Dustproof Explosion Proof Switch IP65 G 3/4" Aluminum

Large Image :  ATEX Waterproof And Dustproof Explosion Proof Switch IP65 G 3/4" Aluminum

Product Details:
Place of Origin: CHINA
Brand Name: CROWN EXTRA
Certification: ATEX,CE,IECEX,ROHS,ISO,CCC
Model Number: SW-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD6/PC
Packaging Details: carton
Delivery Time: 6 WORK DAYS
Payment Terms: T/T, Western Union
Supply Ability: 100000PCS PER MONTH

ATEX Waterproof And Dustproof Explosion Proof Switch IP65 G 3/4" Aluminum

Description
Name: Explosion Proof Switch Input Voltage(v): AC220V/380V
Explosion-proof Mark: Ex D E IIC T6 Gb Ip Rating: IP65
Fireproof Grade: WF2, Material: Aluminum
Entries: G 3/4" (suitable For Φ10mm-Φ14mm Cable); NPT3/4” Is Optional Rated Current: 10-63A

ATEX Waterproof And Dustproof Explosion Proof Switch IP65 G 3/4" Aluminum



SW-10 Features​:

1.Zone 1&2, Zone 21&22
2.Housing is made of die-cast aluminum, with epoxy sprayed
3.Compact structure, beautiful appearance
4.Waterproof and dustproof
5.Ex mark:Ex d e IIC T6 Gb



Technical Parameters
Type
SW-10 Switch
Ex Mark
Ex d e IIC T6 Gb
Rated Current
10-63A
Rated voltage
220/380VAC
Degree of protection
IP65
Entries
G 3/4" (suitable for Φ10mm-Φ14mm cable); NPT3/4” is optional





DETAILED DATASHEET

Outline Code Description Outline Code Description
Horzontel cover A 1 entry in horizon Hung cover F 1 entry in horizon
Horzontel cover B 2 direct entries in horizon Hung cover G 2 direct entries in horizon
Horzontel cover C 3 entries in horizon Hung cover H 3 entries in horizon
Horzontel cover D 4 entries in horizon Hung cover I 4 entries in horizon
Horzontel cover E 2 perpendicular entries in horizon Hung cover J 2 perpendicular entries in horizon


ATEX Waterproof And Dustproof Explosion Proof Switch IP65 G 3/4" Aluminum 0ATEX Waterproof And Dustproof Explosion Proof Switch IP65 G 3/4" Aluminum 1
