Product Details:
|
| Product Name: | Explosion Proof HID Light | EX Mark: | Ex N R IIC T3 Gc ; Ex TD A21 IP65 T195℃ |
|---|---|---|---|
| Wattage:: | 100W 200W 250W 400W | Light Source:: | HID & LED |
| Working Temperature: | -40℃-50℃ | Application Area: | Zone 1,2 & Zone 21,22 |
| Input Voltage: | 220VAC, 50-60Hz | Lamp Holder: | E27 |
| High Light: | ATEX Explosion Proof HID Light,IP55 Explosion Proof HID Light,Explosion Proof Light 400W |
||

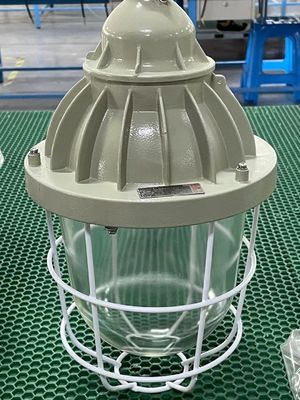

ATEX High Quality Professional 70-400W Explosion Proof HID Light IP55 Optional Lamp Shade
Features:
1. Zone 1&2, Zone 21&22
2. Housing is made of die-cast aluminum, with epoxy sprayed
3. Tempered glass shade, stainless steel exposed fasteners, with galvanized and epoxy coated guard
4. Rotary opening, easy installation and maintenance
5. Optional lamp shade
Specification:
| Type | BCD-100 | BCD-200 | BCD-200B | BCD250 | BCD-400 | |||
| European (ATEX) |
1282 II 2G Ex d IIC T3 Gb Ex n R IIC T3 Gc ; Ex tD A21 IP65 T195℃ |
|||||||
| Gas and Dust | ||||||||
| Input Voltage | 220VAC, 50-60Hz | |||||||
| Degree of protection | IP55 | |||||||
| Lamp holder | E27 | E27 | E27 | E27 | E40 | |||
| Metal Halide Lamp Power | / | 70W/100W/150W/175W | 70W/100W/150W/175W | 250W | 400W | |||
| High Pressure Sodium Lamp Power | / | 70W/100W/110W/150W | 70W/100W/110W/150W | 250W | 400W | |||
| High Pressure Mercury Lamp Power | / | 80W/125W/160W | 80W/125W/160W | 175W/250W | 400W/450W | |||
| Energy Saving Bulb Power | 15W | 36W | 36W | 105W | 150W | |||
| LED Bulb Power | 8W | 15W | 15W | 36W |
/ |
|||
| Weight(kg) | 1.45 | 2.0 | 2.9 | 3.8 | 6.3 | |||
| Mounting Style | Pendant; Ceiling; Wall Bracket; Stanchion | |||||||
