Product Details:
|
| Name: | T5/T8 Explosion Proof Fluorescent Light IP66 Ex-proof Fluorescent Lighting | Input Voltage(v): | 220VAC, 50~60HZ |
|---|---|---|---|
| Ex Mark: | Ex D E IIC T6 Gb/ DIP A21 TA | Ip Rating: | IP66 |
| Item Type: | Explosion Proof Fluorescent Light | Emergency: | Ballast Can Be Added |
| MOQ: | 1 | Illuminance: | 110~125Lm/W |
| Intended Use: | Zone1 And 2, Zone 21 And 22 | Emitting Color: | 6000K |
| Tube Length: | 0.6m/1.2m | Material: | Explosion Proof ABS, Steel, LED Tube Etc |
| High Light: | T5 T8 Flameproof Tube Light IP66,IP66 Ex Proof Fluorescent Lighting,marine explosion-proof fluorescent light 125Lm/W |
||

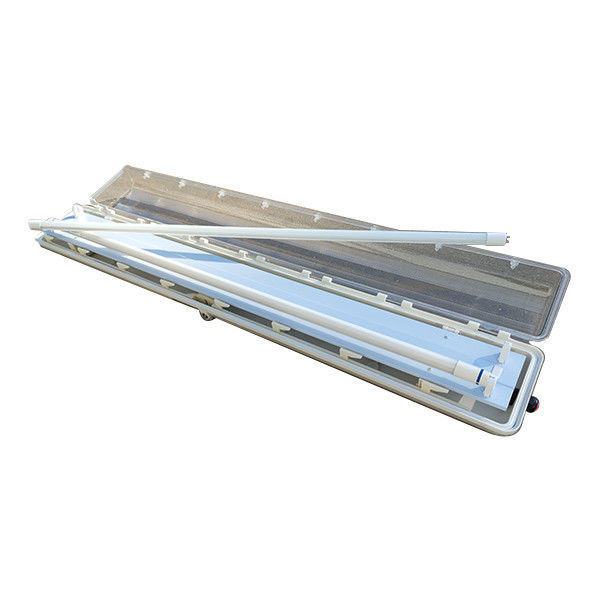

T5/T8 Explosion Proof Fluorescent Light IP66 Ex-proof fluorescent lighting
Features of the product:
1. Scope of application: zone 1, zone2, zone21, zone22 hazardous area locations
IIA, IIB explosive gas atmosphere
2. The shell is made of ZLIO2 aluminum alloy die-casting, and the surface is high-voltage electrostatic spray
3. Tempered glass cover, with strong impact resistance
4. Both steel pipe and cable wiring are acceptable
5. Thread only: G3/4”
technical parameter:
Rated voltage: AC220V50/60HZ, rated power: 9Wx1, 9Wx2 (type l) 18Wx1x 18Wx2 (type ll)
Explosion-proof mark: ExdembllCT6Gb/ExtDA21 IP66T80°C, protection level: IP66, corrosion protection level: WF2
Optional function: human body induction.
Lead-in device: M25X1.5 lead-in specification, suitable for 9mm~12mm cables, terminal block: W4mm, reliable wire connection
Installation method: Ceiling type (X), wall type (b), boom type 1 (g1), boom type 2 (g2), guardrail type (h), flange type (f), hanging chain type (L ), curved rod type (w)
| Main technical parameters | |
| Rated power (W) | 1×8/2×8 1×16/2×16 |
| Rated voltage (V) | 110V-250V |
| Luminous flux (LM) | 880/1760 1760/3520 |
| Average service life of light source (h) | 80000 |
| Protection class | IP66 |
| Ex Mark | Ex edq II C T4 DIP A20 TA,T6 |
| Lead in cable | φ10mm-φ14mm |
| Introduction device | G3/4" |
| Net weight (kg) | Single tube 5.4kg, double tube 6.1kg |
| Parameters of T5 fluorescent lamp with emergency function are as follows: | |
| Emergency starting time (S) | 0.3 |
| Charging time (h) | 24 |
| Emergency lighting time (min) | 90 |
