Product Details:
|
| Name: | T8 IP66 Explosion Proof Fluorescent Light T5 Led Tube Part 18w 36w Fluorescent Lamp | Input Voltage(v): | 110~220V 50~60HZ |
|---|---|---|---|
| Ex Mark: | Ex D E IIC T6 Gb/Ex TD A21 IP66 T80℃ | Ip Rating: | IP66 |
| Item Type: | Explosion Proof Fluorescent Light | Working Lifetime(hour): | 50000 |
| Cri (ra>): | 70±6 | Working Temperature(℃): | -40~60° |
| Certification: | Atex, CE, ROHS, CCC,IEC, | Tube Number: | 1 Tube, 2 Tubes And 3 Tubes |
| High Light: | Atex Explosion Proof Fluorescent Light Fixture T5,led tube light 18 watt,explosion proof fluorescent lamp 18 Watt IP66 |
||

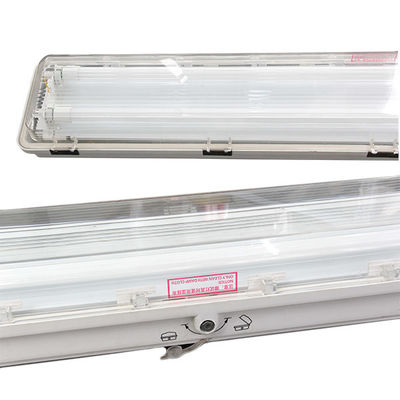

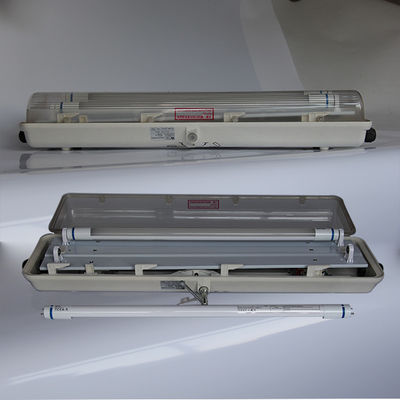

T8 IP66 Explosion Proof Fluorescent Light T5 Led Tube Part 18w 36w Fluorescent Lamp
1. Unique line design, CE, ROHS certification.
2. Waterproof, dustproof, anti-corrosion and explosion-proof.
3. The main body and diffuser meet the requirements of T8 and 85ºC glow test
4. Application: parking lot, tunnel, railway station, warehouse.
5. The ceiling installation is convenient and quick, no dark area, no noise.
6. It can also be applied to different ballasts and tubes according to customer requirements
7. Long-life fluorescent lamp electronic ballast or inductive ballast.
8. High light efficiency and low power consumption.
|
Ex Marking
|
Ex d e IIC T6 Gb/Ex tD a21 IP66 T80℃
|
|
Classification
|
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
|
|
IP Degree
|
IP66 |
|
Corrosion Resistant
|
WF2
|
|
Rated Voltage
|
110~220VAC, 50~60HZ
|
|
Conduit Entries
|
G 3/4" |
|
Temperature
|
T6~T8 |
|
Mounting Styles
|
Pendant; Ceiling; Chain; Embedded; Wall; Stanchion
|
| Model No. | BYS600 | BYS1200 |
| T8 Fluorescent Tube | (1~3)*18W(1350Lm, 75lm/W) | (1~3)*36W(2700Lm, 75lm/W) |
| T5 Fluorescent Tube | (1~3)*14W(1350Lm, 96lm/W) | (1~3)*28W(2100Lm, 75lm/W) |
| LED Tube | (1~3)*8W(800Lm, 100lm/W) | (1~3)*18W(1800Lm, 100lm/W) |
The BYS-2X18W Explosion Proof Fluorescent Fixture from Crown Extra is ATEX/IECEx approved for Zones 1 and 2 and 21 and 22. This 18-watt unit is equipped with two, 4-foot T8/T6 LED tube lamps that operate on 220-240V AC.(can choose LED tube) The IP66-rated fixture is made out of non-sparking materials that are highly resistant to rough impacts (IK10). This fluorescent lamp can be mounted on ceilings or walls using a pair of stainless steel mounting brackets.
Attention:
Before putting into operation, please check the nameplate first to make sure that the parameters are what you ordered.
Before installing the lamp, please connect the incoming cable to the terminal block in the wiring chamber through the entry device, compress the seal ring, well connect earth wire, and tighten the screws. Examine and make sure everything is right, then switch on the power supply;
Don't disassemble the lamp randomly, when repairing, must cut off the power supply first before opening the cover for maintenance; usuallyit need not to repair, as it is featured with long service life.
Pay attention to not hurt the explosion-suppression surface during maintenance, close the clover, make sure to tighten it before using:
Inspect the lamp regularly, clear away the dust from the transparent parts.
